GREE SHINY 12000 BTU/H PORTABLE AIR CONDITIONER
GREE SHINY 12000 BTU/H PORTABLE AIR CONDITIONER
GREE GPC12AL-A3NNA3A
GREE GPC12AL-A3NNA3A
GREE GPC12AL-A3NNA3A
GREE GPC12AL-A3NNA3A

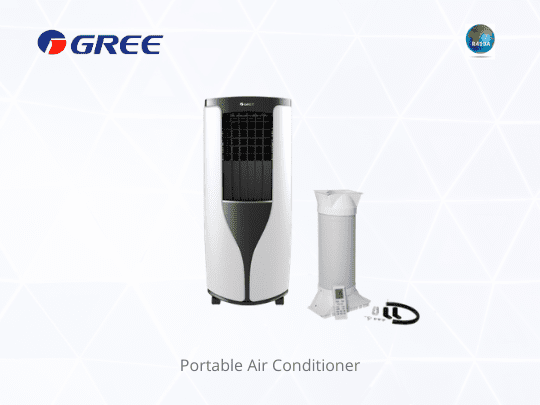

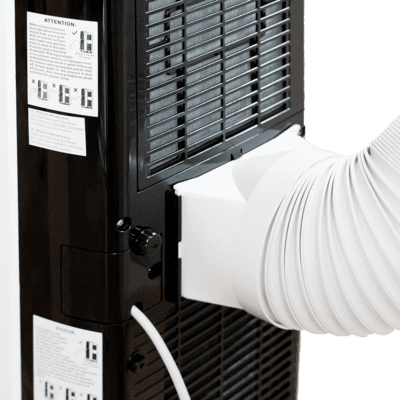

GREE GPC12AL-A3NNA3A hose & accessories

GREE SHINY 12000 BTU/H PORTABLE AIR CONDITIONER

TTD3,155.56
- 12000 BTU/h 115V
- Cools area 161-237 sq. ft.
- Dimensions: 15.354" × 32.283" × 15.945"
- Remote Control
- Free Delivery in 0-2 business days
- Price does not include VAT.


Choose Quantity
+ Add to Cart
Product Details
Specifications
Gree aircondition unitGree Shiny FeaturesStay cool with a blast of cool air with our best in class Gree Portable Air Conditioner that can keep any room comfortable with your ideal temperature.

TECHNICAL SPECIFICATIONS

ParameterUnitValue
Model --GPC12AL-A3NNA3A
Product Code--CK010026900
Rated Voltage
V~
115

Rated FrequencyHz60
Phases--1
Cooling CapacityW3520
Cooling CapacityBtu/h12000
Cooling Power InputW1200
Cooling Power CurrentA10.5
Rated InputW1380
Rated CurrentA11.8
EERW/W2.93
EER(Btu/h)/W10.0
Air Flow Volume(H/M/L) m3/h360/330/300
Air Flow Volume(H/M/L) CFM212/194/177
Dehumidifying VolumeL/h1.79
Dehumidifying VolumePint/h3.78
Application Aream215-22
Sound Pressure LeveldB (A) 53/51/49
Sound Power LeveldB (A) 63/61/59
Permissible Excessive Operating Pressure for the Discharge SideMPa3.8
Permissible Excessive Operating Pressure for the Suction SideMPa2.5
Maximum Allowable PressureMPa4.3
Set Temperature Range 16~30
Set Temperature Range 61~86
Cooling Operation  Ambient Temperature Range 16~35
Cooling Operation  Ambient Temperature Range 61~95
Throttling Method--Capillary

Climate Type--T1
Isolation--I
Moisture Protection--IPX0
Fuse CurrentA3.15
Dimension (W×H×D) mm390×820×405
Dimension (W×H×D) inch 15.354×32.283×15.945
Dimension of Carton Box (L×W×H)mm578×452×847
Dimension of Carton Box (L×W×H)inch 22.756×17.795×33.346
Dimension of Package (L×W×H)mm581×455×862
Dimension of Package (L×W×H)inch 22.874×17.913×33.937
Net Weight kg36
Gross Weightkg42.5
Refrigerant--R410A
Refrigerant Chargekg0.63
CompressorCompressor Trademark GREE

Compressor Manufacturer--ZHUHAI LANDA COMPRESSOR CO., LTD
Compressor Model--QXA-B098xA030<球盖>
Compressor Oil--RB68EP or equivalent
Compressor Type--Rotary
Compressor LRA. A49
Compressor RLA A8.5
Compressor Power InputW958
Compressor Overload Protector--内置式过载(UP3-49>
Evaporator Fan Type Centrifugal
Fan Diameter Length(D×L) mmφ187.6x108.2
Fan Diameter Length(D×L) inchφ7 2/5x4 1/4
Cooling Speedr/min1090/900/730

Fan Motor Power OutputW20
Fan Motor RLAA0.41
Fan Motor Capacitor μF3.5
Evaporator Form --Aluminum Fin-copper Tube
Evaporator Pipe Diametermmφ7
Evaporator Pipe Diameterinch φ 2/7
Evaporator Row-fin Gapmm3-1.3
Evaporator Coil Length (L×D×W) mm3-1/20
Evaporator Coil Length (L×D×W) inch442x38.1x228.6
Swing Motor Model--17 2/5x1 1/2x9

Condenser Fan TypeCentrifugal

Fan Diametermmφ224.5x80
Fan Diameterinch φ8 5/6x3 1/7
Fan Motor Speedrpm980/920
Fan Motor Power OutputW48
Fan Motor RLA A0.75
Fan Motor Capacitor μF10
Condenser  Form --Aluminum Fin-copper Tube
Condenser  Pipe Diameter mmφ5
Condenser  Pipe Diameter inch φ 1/5
Condenser  Rows-fin Gapmm3-1.3+1-1.4
Condenser  Coil Length (L×D×W) mm592x34.2x304.8;475x11.4x266.7
Condenser  Coil Length (L×D×W) inch23 1/3x1 1/3x12;  18 2/3x4/9x10 1/2

General Control  FunctionAutoYES
Cooling YES
Dehumidify YES
Sleep YES
TimerYES
Air Flow YES
Memory YES
Auto FanYES
 Dry Anti-Mildew Design YES

Self Diagnosis YES
LED
YES
Size/ Capacity
  • Capacity
    12000 BTU/h
