FULL GAUGE GPHASELOGEP

FULL GAUGE GPHASELOGEP

TTD878.00
FULL GAUGE VOLTAGE MONITOR PART# GPHASELOGEP
Choose Quantity
+ Add to Cart
Product Details

GPHASELOGEP

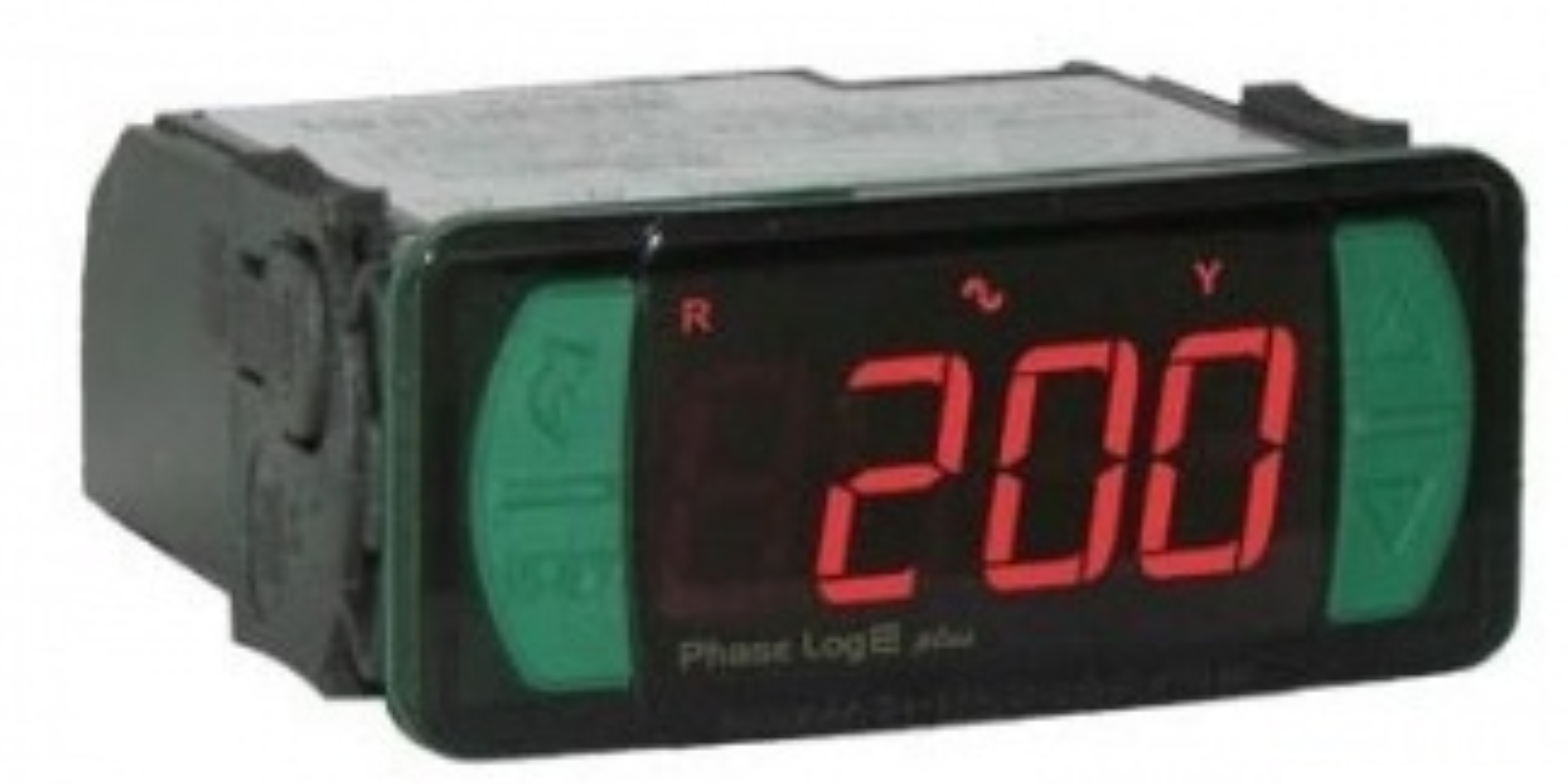

Voltage Monitor Full Gauge Phaseloge Plus 3 Phase Loads True Rms Data Logger (Sitrad Compatible)

Code: GPHASELOGEP

Model: PHASELOGE-plus

UPC: Not Available

Category: HVAC and Refrigeration Parts

Brand: Full Gauge

Origin: Brazil

US tariff code: 8418.99.8060

Base unit: EA(Each)

Gross weight: 0.36 (pound)

Gross volume: 0.02 (cubic foot)

Dimensions: [2.25 x 4.19 x 3.44] Inch


The PhaseLoge plus is an instrument for monitoring and protection of electrical equipment for industrial, commercial and residential facilities. Through the method of True RMS* voltage measurement, the PhaseLoge plus also monitors power quality and protects mono / bi / three phase loads against: under and over voltage, angular asymmetry, modular asymmetry, phase loss and phase sequence inversionThe internal datalogger stores the voltages of each phase of the electrical grid during periods of time determined by the user. Time and date of each sample is stored as well (internal real-time clock). All functions of the PhaseLoge plus can be changed through the software SITRAD®, which can be acessed through the internet (computer/iOS/Android). This software is also used to retrieve the data stored in its datalogger. *True RMS: Real voltage value (Root Mean Square), values evaluated taking into consideration the contribution of the high frequency noise on the network (harmonic distortion). That's the real voltage being perceived by the connected load (i.e. motors, compressors, etc). Using this method, it is possible to accurately measure the voltage at any waveform, whereas the traditional methods are only able to measure correctly pure sine waveforms.


APPLICATION

• Energy quality monitoring

• Motors protection

 • Electrical panels protection

• Other multiphase equipment protection


INDICATIONS & KEYS

INSTALLATION - ELECTRICAL CONNECTIONS
