DANFOSS SM148-3VAI

DANFOSS SM148-3VAI

TTD14,670.00

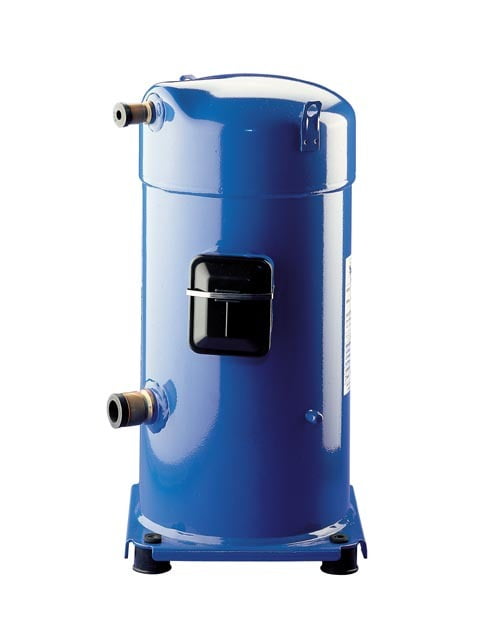

DANFOSS 12 1/2 TON 230V 3PH 60Hz R22 SCROLL COMPRESSOR PART# SM148-3VAI
Choose Quantity
+ Add to Cart
Product Details
Gross weight94.06 kg
Net weight88 kg
EAN5702428801119

Approval standardCE
UL
Brand techniqueScroll compressor
Capacity controlFixed speed
ColourBlue
Compressor power supply [V/Ph/Hz]200-230/3/60
Configuration codeSingle
Connection typeBrazed
DescriptionSM148-3
Diameter [mm]266 mm
Discharge connection height [mm]556 mm
Discharge connection pipe size [in]7/8 in
Discharge connection size [in]7/8 in
Drawing number8551116b
EconomizerNo
Factory HP [bar]33 bar
Factory LP [bar]25 bar
Fitting standardODF
Frequency [Hz]60
Gauge port HPNone
Gauge port LPSchrader
Generation codeC
Glass mountingThreaded
Glass torque [Nm]50 N-m
GP LP torque [Nm]15 N-m
High side max pressure (Ps)30.2 bar
High Side TS Max150 °C
High Side TS Min-35 °C
High Side Volume1.6 L
High value of nominal voltage at 50Hz [V]0 V
High value of nominal voltage at 60Hz [V]230 V
High value of voltage range at 50Hz [V]0 V
High value of voltage range at 60Hz [V]253 V
IP protection classIP54 (with cable gland)
Low side max pressure (Ps)25 bar
Low Side TS Max63 °C
Low Side TS Min-35 °C
Low Side Volume14.7 L
Low value of nominal voltage at 50Hz [V]0 V
Low value of nominal voltage at 60Hz [V]200 V
Low value of voltage range at 50Hz [V]0 V
Low value of voltage range at 60Hz [V]180 V
LRA255 A
Maximum Operating Current [MOC]57 A
MCC64 A
Model numberSM148T3VC
Motor protectionInternal overload protector
Mounting torque [Nm]21 N-m
Nominal cooling capacity 60 kBTU/h149.49 kBtu/h
Nominal cooling capacity at 60Hz43.8 kW
Number of starts per hour [Max]12
Oil charge [L]3.6 L
Oil equalization3/8'' flare SAE
Oil equalization torque [Nm]48 N-m
Oil reference160P
Oil typeMineral
Packaging height [mm]671 mm
Packaging length [mm]470 mm
Packaging weight [Kg]671 kg
Packaging width [mm]370 mm
Packing formatSingle pack
Packing quantity1
Phase3
Power connectionsScrew 4.8 mm
RefrigerantR22
Refrigerant charge [kg] [Max]12.5 kg
Relief valveNone
RLA45.7 A
Rotational speed at 50Hz [rpm]0 rpm
Rotational speed at 60Hz [rpm]3500 rpm
Segment usageAir conditioning
Shipped instructionsInstallation instructions
Shipped mountingMounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oilInitial oil charge
Suction connection height [mm]180 mm
Suction connection pipe size [in]1 3/8 in
Suction connection size [in]1 3/8 in
Swept volume [cm3]199 cm³
TechnologyScroll
Test dif [bar] [Max]24 bar
Test HP [bar] [Max]32 bar
Test LP [bar] [Max]25 bar
Torque earth [Nm]2 N-m
Torque Ebox cover [Nm]2 N-m
Torque power [Nm]3 N-m
Total height [mm]591 mm
TypeSM
Type designationCompressor
Viscosity [cP]32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]0.29 Ohm
