DANFOSS SM120-3VM SM120-3VI SM120-3

DANFOSS SM120-3VM

TTD13,248.00

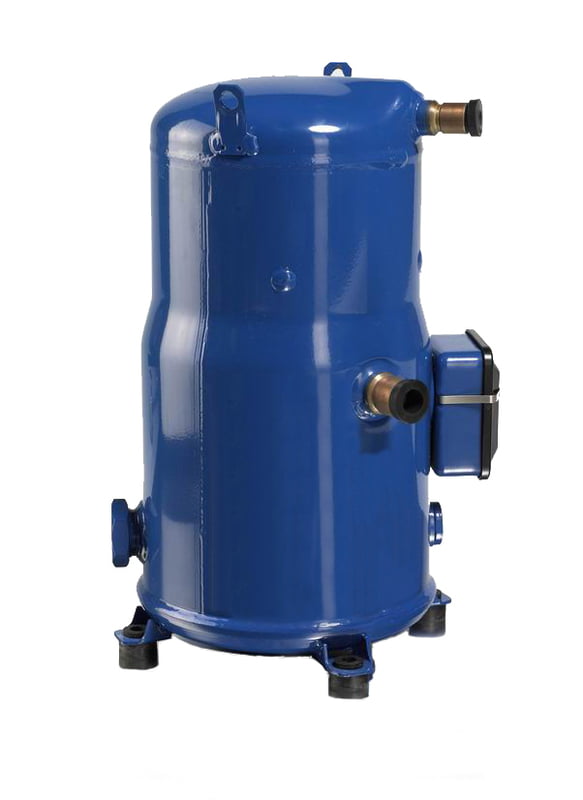

DANFOSS 10TON 230V 3PH 60Hz R22 SCROLL COMPRESSOR PART# SM120-3VM
Choose Quantity
+ Add to Cart
Product Details
Gross weight79.34 kg
Net weight73 kg
EAN5702424053321

Approval standardCE
UL
Brand techniqueScroll compressor
Capacity controlFixed speed
ColourBlue
Compressor power supply [V/Ph/Hz]200-230/3/60
Configuration codeSingle
Connection typeBrazed
DescriptionSM120-3
Diameter [mm]254 mm
Discharge connection height [mm]515 mm
Discharge connection pipe size [in]7/8 in
Discharge connection size [in]7/8 in
Drawing number8552037b
EconomizerNo
Factory HP [bar]33 bar
Factory LP [bar]25 bar
Fitting standardODF
Frequency [Hz]60
Gauge port HPNone
Gauge port LPSchrader
Generation codeC
Glass mountingThreaded
Glass torque [Nm]50 N-m
GP LP torque [Nm]15 N-m
High side max pressure (Ps)30.2 bar
High Side TS Max150 °C
High Side TS Min-35 °C
High Side Volume1.1 L
High value of nominal voltage at 50Hz [V]0 V
High value of nominal voltage at 60Hz [V]230 V
High value of voltage range at 50Hz [V]0 V
High value of voltage range at 60Hz [V]253 V
IP protection classIP54 (with cable gland)
Low side max pressure (Ps)25 bar
Low Side TS Max63 °C
Low Side TS Min-35 °C
Low Side Volume13.6 L
Low value of nominal voltage at 50Hz [V]0 V
Low value of nominal voltage at 60Hz [V]200 V
Low value of voltage range at 50Hz [V]0 V
Low value of voltage range at 60Hz [V]180 V
LRA237 A
Maximum Operating Current [MOC]48 A
MCC50 A
Model numberSM120S3VC
Motor protectionInternal overload protector
Mounting torque [Nm]21 N-m
Nominal cooling capacity 60 kBTU/h125.26 kBtu/h
Nominal cooling capacity at 60Hz36.7 kW
Number of starts per hour [Max]12
Oil charge [L]3.25 L
Oil equalization3/8'' flare SAE
Oil equalization torque [Nm]48 N-m
Oil reference160P
Oil typeMineral
Packaging height [mm]757 mm
Packaging length [mm]1140 mm
Packaging weight [Kg]638 kg
Packaging width [mm]950 mm
Packing formatIndustrial pack
Packing quantity8
Phase3
Power connectionsScrew 4.8 mm
RefrigerantR22
Refrigerant charge [kg] [Max]10 kg
Relief valveNone
RLA35.7 A
Rotational speed at 50Hz [rpm]0 rpm
Rotational speed at 60Hz [rpm]3500 rpm
Segment usageAir conditioning
Shipped instructionsInstallation instructions
Shipped mountingMounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oilInitial oil charge
Suction connection height [mm]178 mm
Suction connection pipe size [in]1 3/8 in
Suction connection size [in]1 3/8 in
Swept volume [cm3]166.6 cm³
TechnologyScroll
Test dif [bar] [Max]24 bar
Test HP [bar] [Max]32 bar
Test LP [bar] [Max]25 bar
Torque earth [Nm]2 N-m
Torque power [Nm]3 N-m
Total height [mm]558 mm
TypeSM
Type designationCompressor
Viscosity [cP]32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]0.26 Ohm
