DANFOSS NUT60LRA
DANFOSS NUT60LRA
DANFOSS NUT60LRA

DANFOSS NUT60LRA

TTD995.00

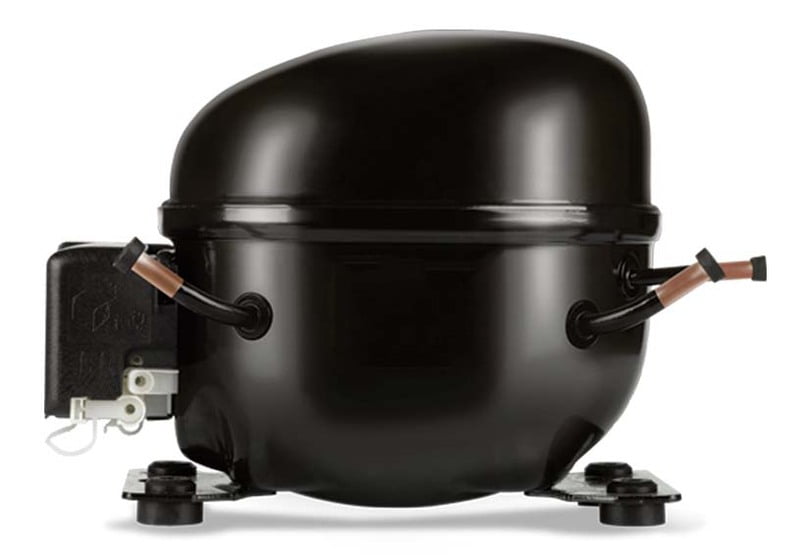

DANFOSS NUT60LRA R290 115~127V 60Hz RECIPROCATING COMPRESSOR PART# 123B3149
Choose Quantity
+ Add to Cart
Product Details


ApplicationsLBP
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]4.26 Ohm
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColorBlack
ColourBlack
Compressor power supply [V/Ph/Hz]115/1/60
Configuration codeSingle
Cut in current HST 60Hz [A]20 A
Cut in current LST 60Hz [A]20 A
DescriptionNUT60LRa
Discharge connection angle [°]0 °
Discharge connection commentsRubber plug
Discharge connection diameter [mm]4.9 mm
Discharge connection height [mm]83 mm
Discharge connection materialCopper
EconomizerNo
Frequency [Hz]60
Height from baseplate [mm]174 mm
High value of nominal voltage at 60Hz [V]127 V
High value of voltage range at 60Hz [V]140 V
Low value of nominal voltage at 60Hz [V]115 V
Low value of voltage range at 60Hz [V]98 V
LRA HST 60Hz [A]20 A
Main winding resistance for single-phase compressors [Ohm]2.65 Ohm
MCC4.10 A
Model numberNUT60LRa
Motor typeCSIR

No. of phases (compressor)1
Oil quantity [cm3]200 cm³
Oil typePOE
Packing formatIndustrial pack
Packing quantity1
Process connection angle [°]70 °
Process connection commentsRubber plug
Process connection diameter [mm]6.2 mm
Process connection materialCopper
RefrigerantR290
Refrigerant charge [kg] [Max]0.15 kg
Rotational speed at 60Hz [rpm]3600 rpm
Segment usageRefrigeration LT
Start capacitor capacitance200 µF
Suction connection angle [°]40 °
Suction connection commentsRubber plug
Suction connection diameter [mm]6.2 mm
Suction connection height [mm]92 mm
Suction connection materialCopper
Swept volume [cm3]6 cm³
TechnologyReciprocating
Total height [mm]180 mm
TypeU
Type designationCompressor
Voltage 60Hz [V]115 V
Voltage 60Hz [V] [Max]127 V
Winding temperature short term [°F] [Max]135 °C
Winding temperature stat [°C] [Max]115 °C
