DANFOSS NLY60RRA

DANFOSS NLY60RRA

TTD910.00

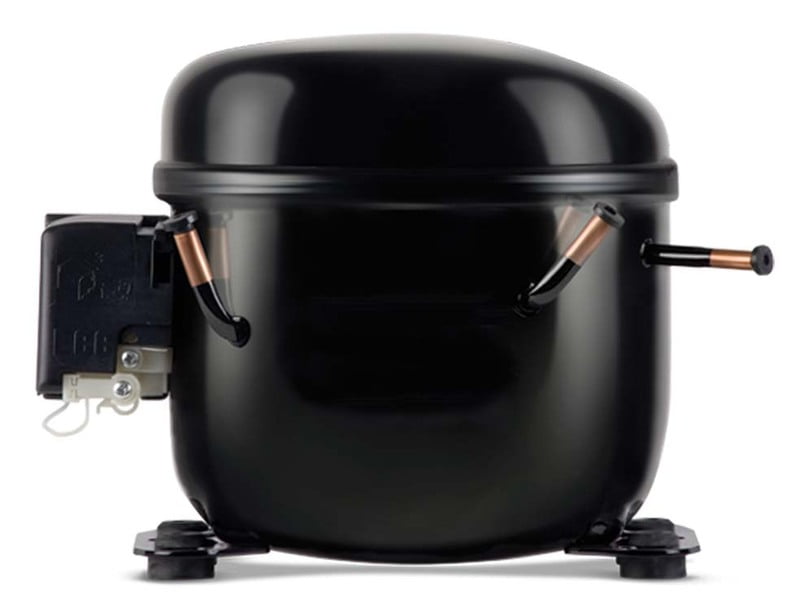

DANFOSS NLY60RRA R290 115~127V 60Hz RECIPROCATING COMPRESSOR PART# 123B3518
Choose Quantity
+ Add to Cart
Product Details
Gross weight11 kg
Net weight10.8 kg

ApplicationsHBP
MBP
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]7.25 Ohm
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColorBlack
ColourBlack
Compressor power supply [V/Ph/Hz]115/1/60
Configuration codeSingle
Cut in current HST 60Hz [A]23 A
DescriptionNLY60RRa
Discharge connection angle [°]0 °
Discharge connection commentsRubber plug
Discharge connection diameter [mm]4.9 mm
Discharge connection height [mm]108 mm
Discharge connection materialCopper
EconomizerNo
Frequency [Hz]60
Height from baseplate [mm]186 mm
High value of nominal voltage at 60Hz [V]127 V
High value of voltage range at 60Hz [V]140 V
Low value of nominal voltage at 60Hz [V]115 V
Low value of voltage range at 60Hz [V]98 V
LRA HST 60Hz [A]23 A
Main winding resistance for single-phase compressors [Ohm]2.2 Ohm
MCC6.30 A
Model numberNLY60RRa
Motor typeCSIR
No. of phases (compressor)1
Nominal cooling capacity 60 kBTU/h3.27 kBtu/h
Nominal cooling capacity at 60Hz1 kW
Oil quantity [cm3]350 cm³
Oil typePOE
Packing formatIndustrial pack
Packing quantity1
Process connection angle [°]50 °
Process connection commentsRubber plug
Process connection diameter [mm]6.5 mm
Process connection materialCopper
RefrigerantR290
Refrigerant charge [kg] [Max]0.15 kg
Rotational speed at 60Hz [rpm]3600 rpm
Segment usageRefrigeration MT
Start capacitor capacitance150 µF
Suction connection angle [°]20 °
Suction connection commentsRubber plug
Suction connection diameter [mm]6.5 mm
Suction connection height [mm]113 mm
Suction connection materialCopper
Swept volume [cm3]5.98 cm³
TechnologyReciprocating
Total height [mm]192 mm
TypeL
Type designationCompressor
Voltage 60Hz [V]115 V
Voltage 60Hz [V] [Max]127 V
Winding temperature short term [°F] [Max]135 °C
Winding temperature stat [°C] [Max]115 °C
