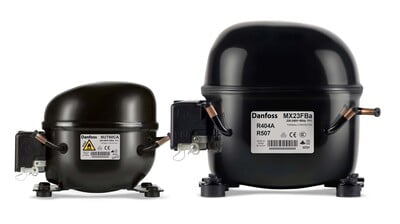

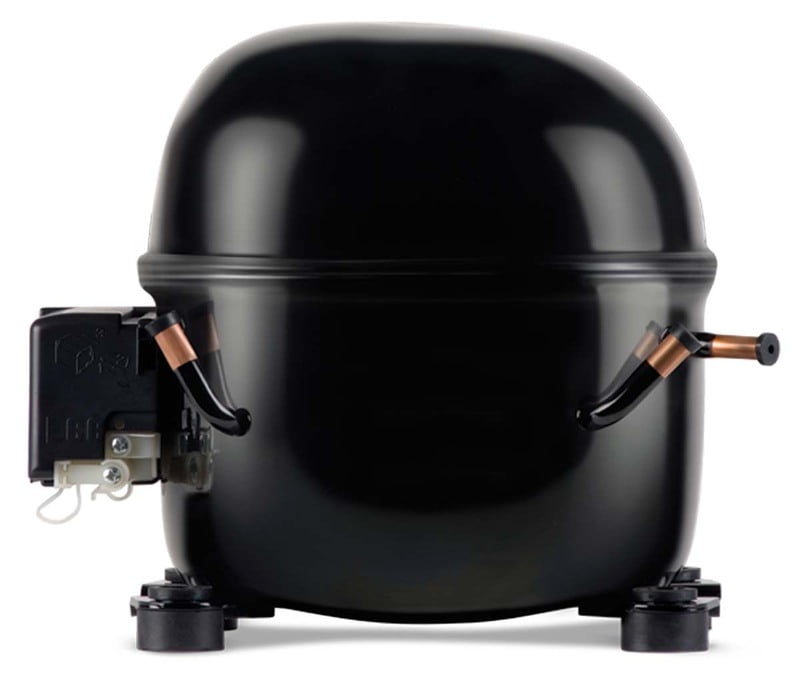

DANFOSS MX18TGA
DANFOSS MX18TGA
DANFOSS MX18TGA

DANFOSS MX18TGA

TTD2,026.00
DANFOSS MX18TGA R404A 208~230V 60Hz RECIPROCATING COMPRESSOR PART# 123B2541
Choose Quantity
+ Add to Cart
Product Details
Gross weight16.5 kg
Net weight16.2 kg
EAN5702428584234

ApplicationsHBP
MBP
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]7.22 Ohm
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlack
Compressor power supply [V/Ph/Hz]230/1/50 230/1/60
Configuration codeSingle
Cut in current HST 50Hz [A]31.5 A
Cut in current HST 60Hz [A]30.5 A
Cut in current HST [A]31.5 A
DescriptionMX18TGa
Discharge connection angle [°]0 °
Discharge connection commentsRubber plug
Discharge connection diameter [mm]6.5 mm
Discharge connection height [mm]98 mm
Discharge connection materialCopper
EconomizerNo
Frequency [Hz]50/60
Height from baseplate [mm]221 mm
High value of nominal voltage at 50Hz [V]220 V
High value of nominal voltage at 60Hz [V]230 V
High value of voltage range at 50Hz [V]242 V
High value of voltage range at 60Hz [V]253 V
Low value of nominal voltage at 50Hz [V]200 V
Low value of nominal voltage at 60Hz [V]220 V
Low value of voltage range at 50Hz [V]170 V
Low value of voltage range at 60Hz [V]187 V
LRA HST 50Hz [A]31.5 A
LRA HST 60Hz [A]30.5 A
LRA HST [A]31.5 A
Main winding resistance for single-phase compressors [Ohm]2.34 Ohm
MCC10.50 A
Model numberMX18TGa
Motor typeCSR
No. of phases (compressor)1
Oil quantity [cm3]500 cm³
Oil typePOE
Packing formatIndustrial pack
Packing quantity1
Process connection angle [°]30 °
Process connection commentsRubber plug
Process connection diameter [mm]9.7 mm
Process connection materialCopper
RefrigerantR404A
Refrigerant charge [kg] [Max]1.4 kg
Rotational speed at 50Hz [rpm]3000 rpm
Rotational speed at 60Hz [rpm]3600 rpm
Run capacitor capacitance20 µF
Segment usageRefrigeration MT
Start capacitor capacitance88-108 µF
Suction connection angle [°]30 °
Suction connection commentsRubber plug
Suction connection diameter [mm]9.7 mm
Suction connection height [mm]103 mm
Suction connection materialCopper
Swept volume [cm3]18.4 cm³
TechnologyReciprocating
Total height [mm]230 mm
TypeX
Type designationCompressor
Voltage 50Hz [V]200 V
Voltage 50Hz [V] [Max]220 V
Voltage 60Hz [V]220 V
Voltage 60Hz [V] [Max]230 V
Winding temperature short term [°C] [Max]135 °C
Winding temperature stat [°C] [Max]115 °C
