DANFOSS MX18TE
DANFOSS MX18TE
DANFOSS MX18TE

DANFOSS MX18TE

TTD2,140.00

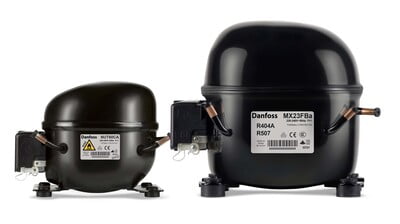

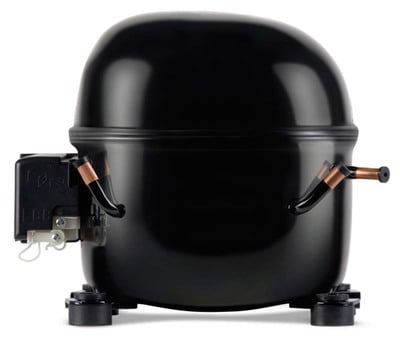

DANFOSS MX18TE R404A 115V 1PH 60Hz RECIPROCATING COMPRESSOR PART# 123B2545
Choose Quantity
+ Add to Cart
Product Details
Gross weight17.8 kg
Net weight17.5 kg
EAN5702428584296

ApplicationsLBP
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]3.4 Ohm
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlack
Compressor power supply [V/Ph/Hz]115/1/60
Configuration codeSingle
Cut in current HST 60Hz [A]60.2 A
DescriptionMX21FR
Discharge connection angle [°]0 °
Discharge connection commentsRubber plug
Discharge connection diameter [mm]6.5 mm
Discharge connection height [mm]98 mm
Discharge connection materialCopper
EconomizerNo
Frequency [Hz]60
Height from baseplate [mm]221 mm
High value of nominal voltage at 60Hz [V]127 V
High value of voltage range at 60Hz [V]140 V
Low value of nominal voltage at 60Hz [V]115 V
Low value of voltage range at 60Hz [V]98 V
LRA HST 60Hz [A]60.2 A
Main winding resistance for single-phase compressors [Ohm]0.52 Ohm
MCC13.60 A
Model numberMX21FR
Motor typeCSR
No. of phases (compressor)1
Oil quantity [cm3]650 cm³
