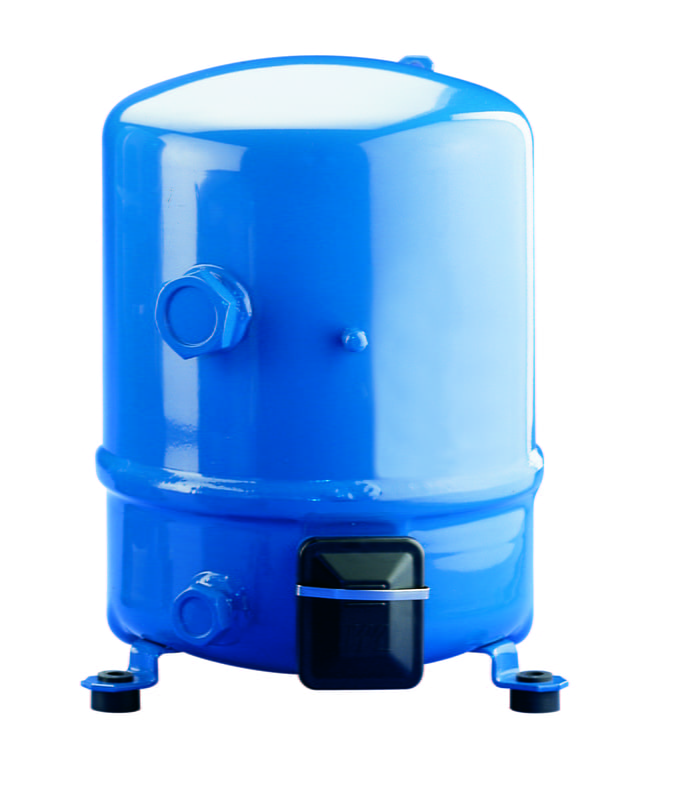

DANFOSS MTZ64-3VM
DANFOSS MTZ64-3VM
DANFOSS MTZ64-3VM

DANFOSS MTZ64-3VM

TTD7,500.00
DANFOSS 44000BTU/h 5 1/2HP 230V 3PH 60HZ R404A RECIPROCATING COMPRESSOR PART# MTZ64-3VM
Choose Quantity
+ Add to Cart
Product Details
Gross weight41.5 kg
Net weight39 kg
EAN5702428866972

Approval standardCE
UL
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlue
Compressor power supply [V/Ph/Hz]200-230/3/60
Configuration codeSingle
Connection typeRotolock
Cylinder2
DescriptionMTZ064-3
Diameter [mm]288 mm
Discharge connection height [mm]74 mm
Discharge connection mounting torque [Nm]90 N-m
Discharge connection pipe size [in]3/4 in
Discharge connection rotolock size [in]1 1/4 in
Discharge connection size [in]1 1/4 in
Discharge connection sleeve pipe size [in]3/4 in
Drawing number8502012g
EconomizerNo
Factory HP [bar]25 bar
Factory LP [bar]25 bar
Fitting remark(shipped with rotolock version only)
Fitting sleeveODF
Fitting standardRotolock
Frequency [Hz]60
Gauge port HPNone
Gauge port LPSchrader
Generation codeA
Glass mountingThreaded
Glass torque [Nm]50 N-m
GP LP torque [Nm]15 N-m
High side max pressure (Ps)29.4 bar
High Side TS Max150 °C
High Side TS Min-35 °C
High Side Volume0.6 L
High value of nominal voltage at 50Hz [V]0 V
High value of nominal voltage at 60Hz [V]230 V
High value of voltage range at 50Hz [V]0 V
High value of voltage range at 60Hz [V]253 V
IP protection classIP55 (with cable gland)
Low side max pressure (Ps)22.6 bar
Low Side TS Max50 °C
Low Side TS Min-35 °C
Low Side Volume16.5 L
Low value of nominal voltage at 50Hz [V]0 V
Low value of nominal voltage at 60Hz [V]200 V
Low value of voltage range at 50Hz [V]0 V
Low value of voltage range at 60Hz [V]180 V
LRA137 A
MCC29 A
Model numberMTZ64HM3AVE
Motor protectionInternal overload protector
Mounting torque [Nm]15 N-m
Nominal cooling capacity at 50Hz8.1 kW
Nominal cooling capacity at 60Hz10.6 kW
Number of starts per hour [Max]12
Oil charge [L]1.8 L
Oil equalization3/8'' flare SAE
Oil equalization torque [Nm]30 N-m
Oil reference175PZ
Packaging height [mm]550 mm
Packaging length [mm]1150 mm
Packaging weight [Kg]254 kg
Packaging width [mm]800 mm
Packing formatIndustrial pack
Packing quantity6
Phase3
Power connectionsSpade
RefrigerantR134a
R404A
R407C
R407A
R407F
R448A
R449A
R452A
R507A
R513A
Refrigerant charge [kg] [Max]5 kg
Relief valve30 bar/8 bar
Rotational speed at 50Hz [rpm]0 rpm
Rotational speed at 60Hz [rpm]3500 rpm
Segment usageAir conditioning
Refrigeration MT
Shipped fittingsSuction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructionsInstallation instructions
Shipped mountingMounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oilInitial oil charge
Suction connection height [mm]265 mm
Suction connection mounting torque [Nm]110 N-m
Suction connection pipe size [in]7/8 in
Suction connection rotolock size [in]1 3/4 in
Suction connection size [in]1 3/4 in
Suction connection sleeve pipe size [in]7/8 in
Swept volume [cm3]107.71 cm³
TechnologyReciprocating
Test dif [bar] [Max]30 bar
Test HP [bar] [Max]30 bar
Test LP [bar] [Max]25 bar
Torque earth [Nm]3 N-m
Torque power [Nm]3 N-m
Total height [mm]413 mm
TypeMTZ
Type designationCompressor
Winding resistance for three-phase compressors with identical windings [Ohm]0.58 Ohm
