DANFOSS MS26FF

DANFOSS MS26FF

TTD2,260.00

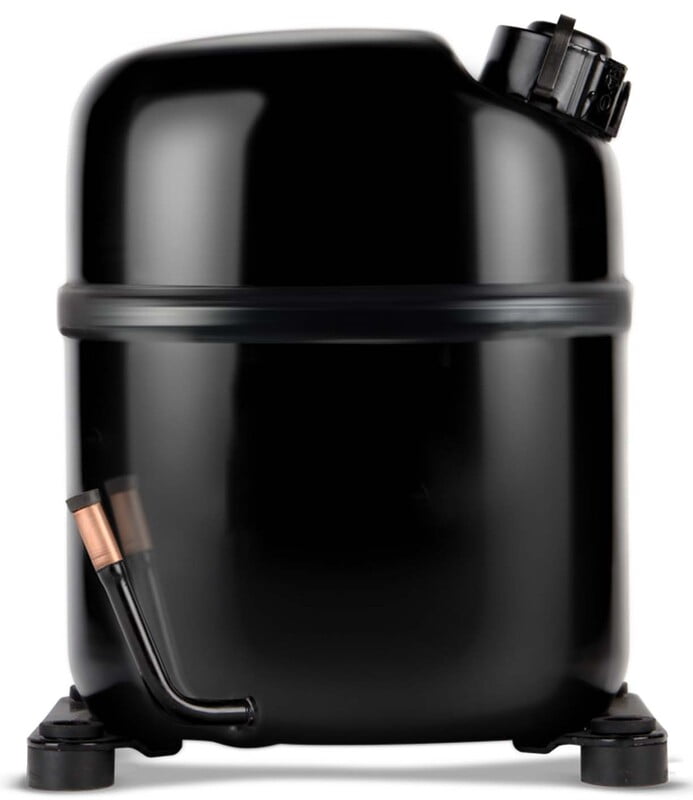

DANFOSS MS26FF R404A 208-230V 60Hz RECIPROCATING COMPRESSOR PART# 123B2157
Choose Quantity
+ Add to Cart
Product Details
Gross weight23 kg
Net weight22.6 kg
EAN5702428584326

ApplicationsLBP
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]4.87 Ohm
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlack
Compressor power supply [V/Ph/Hz]230/1/60
Configuration codeSingle
Cut in current HST 60Hz [A]42 A
DescriptionMS26FF
Discharge connection angle [°]63 °
Discharge connection commentsRubber plug
Discharge connection diameter [mm]8 mm
Discharge connection height [mm]82 mm
Discharge connection materialCopper
EconomizerNo
Frequency [Hz]60
Height from baseplate [mm]276 mm
High value of nominal voltage at 50Hz [V]0 V
High value of nominal voltage at 60Hz [V]230 V
High value of voltage range at 50Hz [V]0 V
High value of voltage range at 60Hz [V]253 V
Low value of nominal voltage at 50Hz [V]0 V
Low value of nominal voltage at 60Hz [V]208 V
Low value of voltage range at 50Hz [V]0 V
Low value of voltage range at 60Hz [V]177 V
LRA HST 60Hz [A]42 A
Main winding resistance for single-phase compressors [Ohm]1.38 Ohm
MCC9.50 A
Model numberMS26FF
Motor typeCSR
No. of phases (compressor)1
Oil quantity [cm3]887 cm³
Oil typePOE
Packing formatIndustrial pack
Packing quantity1
Process connection angle [°]0 °
Process connection commentsRubber plug
Process connection diameter [mm]9.65 mm
Process connection materialCopper
RefrigerantR404A
Refrigerant charge [kg] [Max]1.7 kg
Rotational speed at 60Hz [rpm]3600 rpm
Run capacitor capacitance20 µF
Segment usageRefrigeration LT
Start capacitor capacitance88-108 µF
Suction connection angle [°]0 °
Suction connection commentsRubber plug
Suction connection diameter [mm]12.7 mm
Suction connection height [mm]264 mm
Suction connection materialCopper
Swept volume [cm3]25.93 cm³
TechnologyReciprocating
Total height [mm]282 mm
TypeS
Type designationCompressor
Voltage 60Hz [V]208 V
Voltage 60Hz [V] [Max]230 V
Winding temperature short term [°C] [Max]135 °C
Winding temperature stat [°C] [Max]115 °C
