DANFOSS MPT12LD

DANFOSS MPT12LD

TTD1,395.00

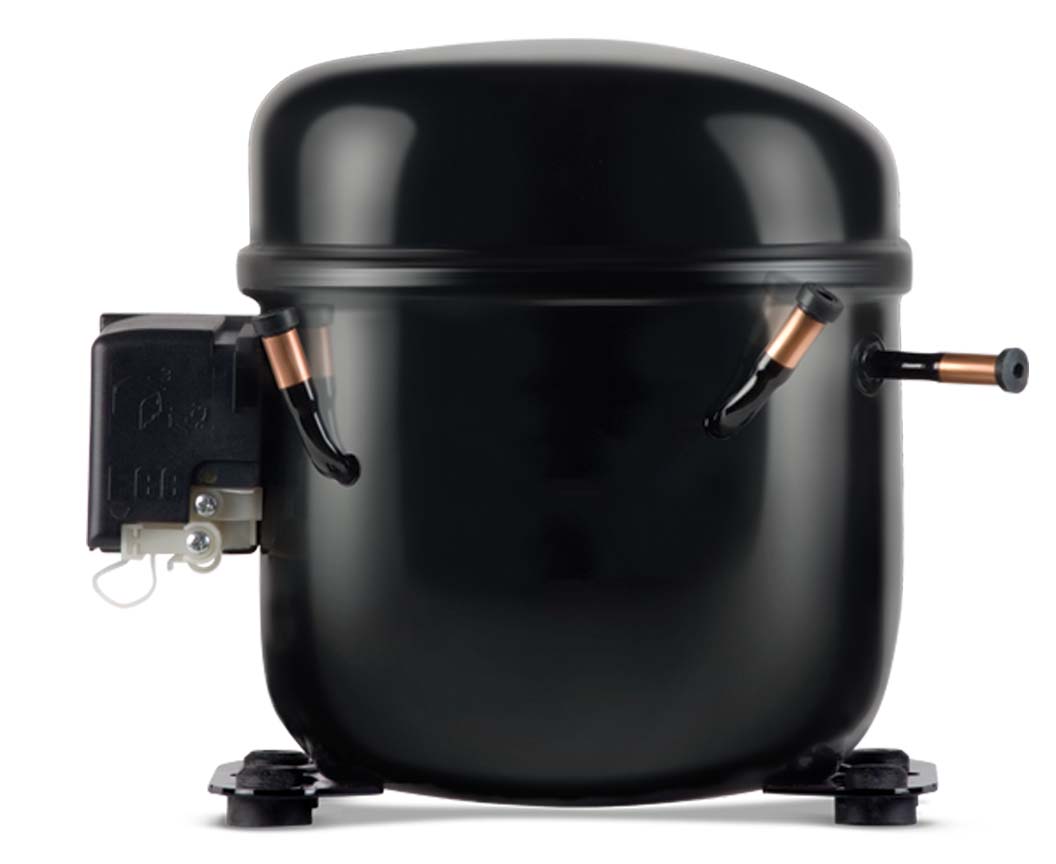

DANFOSS MPT12LD R404A 60Hz 115V RECIPROCATING COMPRESSOR PART# 123B2152
Choose Quantity
+ Add to Cart
Product Details
Gross weight11.8 kg
Net weight11.5 kg
EAN5702428584357

ApplicationsLBP
Approval standardUL
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]6.66 Ohm
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlack
Compressor power supply [V/Ph/Hz]115/1/60
Configuration codeSingle
Cut in current HST 60Hz [A]42 A
DescriptionMPT12LD
Discharge connection angle [°]0 °
Discharge connection commentsRubber plug
Discharge connection diameter [mm]6.5 mm
Discharge connection height [mm]121 mm
Discharge connection materialCopper
EconomizerNo
Frequency [Hz]60
Height from baseplate [mm]211 mm
High value of nominal voltage at 60Hz [V]115 V
High value of voltage range at 60Hz [V]132 V
Low value of nominal voltage at 60Hz [V]115 V
Low value of voltage range at 60Hz [V]98 V
LRA HST 60Hz [A]42 A
Main winding resistance for single-phase compressors [Ohm]1.04 Ohm
MCC10.80 A
Model NumberMPT12LD
Motor typeCSR
No. of phases (compressor)1
Oil quantity [cm3]400 cm³
Oil typePOE
Packing formatIndustrial pack
Packing quantity1
Process connection angle [°]50 °
Process connection commentsRubber plug
Process connection diameter [mm]8.1 mm
Process connection materialCopper
RefrigerantR404A
Refrigerant charge [kg] [Max]1.15 kg
Rotational speed at 60Hz [rpm]3600 rpm
Run capacitor capacitance15 µF
Segment usageRefrigeration LT
Start capacitor capacitance250 µF
Suction connection angle [°]20 °
Suction connection commentsRubber plug
Suction connection diameter [mm]8.1 mm
Suction connection height [mm]125 mm
Suction connection materialCopper
Swept volume [cm3]12.1 cm³
TechnologyReciprocating
Total height [mm]217 mm
TypeP
Type designationCompressor
Voltage 60Hz [V]115 V
Voltage 60Hz [V] [Max]115 V
Winding temperature short term [°C] [Max]135 °C
Winding temperature stat [°C] [Max]115 °C
