DANFOSS HRH038U2LP6 120U1268 120U1271

DANFOSS HRH038U2LP6

TTD5,148.00

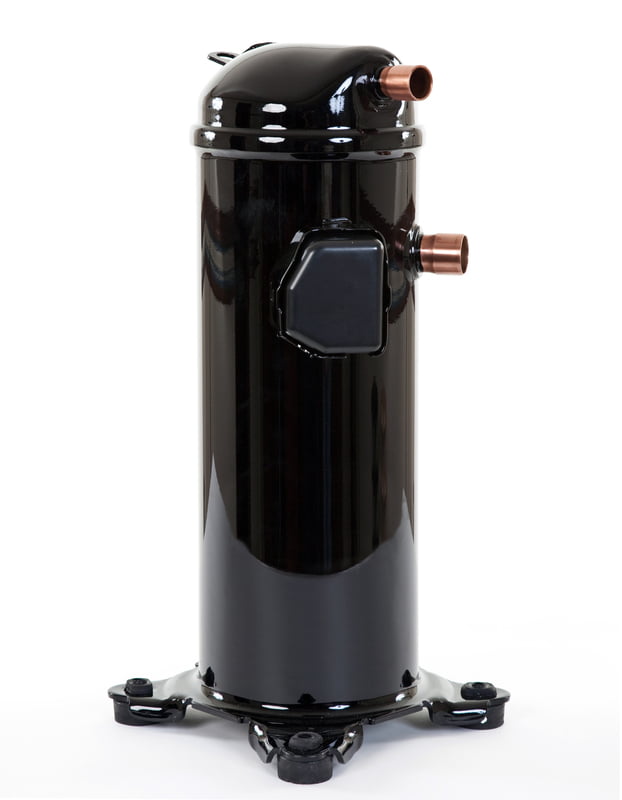

DANFOSS 3TON 230V 3Ph 60Hz R410A SCROLL COMPRESSOR MODEL# HRH038U2LP6
Choose Quantity
+ Add to Cart
Product Details
Gross weight32 kg
Net weight32 kg
EAN5702428205771

Approval standardCE
UL
Brand techniqueScroll compressor
Capacity controlFixed speed
ColourBlack
Compressor power supply [V/Ph/Hz]200-220/3/50 208-230/3/60
Configuration codeSingle
Connection typeBrazed
DescriptionHRH038U2
Diameter [mm]165 mm
Discharge connection height [mm]379 mm
Discharge connection pipe size [in]1/2 in
Discharge connection size [in]1/2 in
Drawing number0XC6301B-2
EconomizerNo
Fitting standardODF
Frequency [Hz]50/60
Gauge port HPNone
Gauge port LPNone
Gaz equalizationNone
Glass mountingNone
High side max pressure (Ps)46.1 bar
High value of nominal voltage at 50Hz [V]220 V
High value of nominal voltage at 60Hz [V]230 V
High value of voltage range at 50Hz [V]242 V
High value of voltage range at 60Hz [V]253 V
IP protection classIP22
Length [mm]239 mm
Low side max pressure (Ps)31.1 bar
Low value of nominal voltage at 50Hz [V]200 V
Low value of nominal voltage at 60Hz [V]208 V
Low value of voltage range at 50Hz [V]180 V
Low value of voltage range at 60Hz [V]187 V
LRA115 A
MCC23 A
Model numberHRH038U2LP6
Motor protectionInternal overload protector
Nominal cooling capacity 60 kBTU/h37.88 kBtu/h
Nominal cooling capacity at 50Hz8.2 kW
Nominal cooling capacity at 60Hz11.1 kW
Nominal heating capacity at 50Hz5.2 kW
Oil charge [L]1.06 L
Oil equalizationNone
Oil reference320HV
Oil typePVE
Packing formatSingle pack/pallet
Packing quantity16
Phase3
Power connectionsSpade
RefrigerantR410A
Refrigerant charge [kg] [Max]3.63 kg
Relief valveYes
RLA14.7 A
Rotational speed at 50Hz [rpm]2900 rpm
Rotational speed at 60Hz [rpm]3500 rpm
Segment usageAir conditioning
Shipped instructionsInstallation instructions
Shipped mountingMounting kit with grommets and sleeves
Shipped oilInitial oil charge
Suction connection height [mm]250 mm
Suction connection pipe size [in]3/4 in
Suction connection size [in]3/4 in
Swept volume [cm3]36.54 cm³
TechnologyScroll
Total height [mm]413 mm
TypeHRH
Type designationCompressor
Viscosity [cP]68 cP
Width [mm]239 mm
Winding resistance 1-2 [Ohm]0.98 Ohm
Winding resistance 1-3 [Ohm]0.98 Ohm
Winding resistance 2-3 [Ohm]0.73 Ohm
