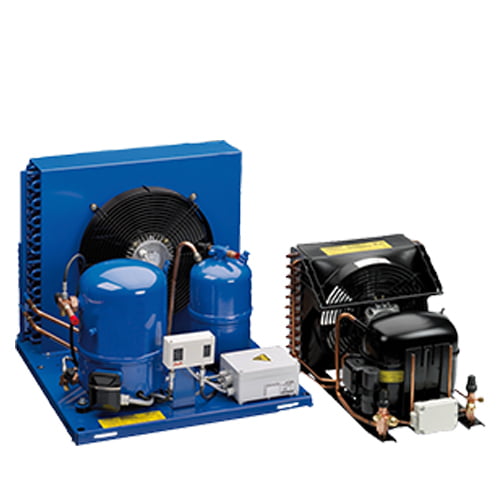

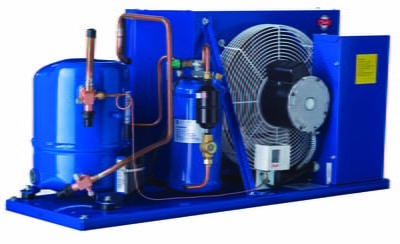

DANFOSS 114N3209 OPTYMA CONDENSING UNIT
TTD12,494.00
DANFOSS OPTYMA 1.5 HP 220V 3PH 60Hz R404A CONDENSING UNIT PART# HJZ018D32Q
Choose Quantity
Product Details
| Gross weight | 64 kg |
| Net weight | 55 kg |
| EAN | 5702428872607 |
| Applications | HBP MBP |
| Brand | Optyma |
| Compressor Code no | MTZ18-3VI |
| Compressor LRA [A] | 38 A |
| Compressor model | MTZ018-3 |
| Compressor power supply [V/Ph/Hz] | 230/3/60 |
| Compressor RLA [A] | 6.4 A |
| Compressor type designation | MTZ18-3VI |
| Condenser type | D8 |
| Description | OP-HJZ018D32Q |
| Design Pressure High [bar] | 23 bar |
| Design Pressure High [psi] | 331 psi |
| Design Pressure Low [bar] | 12 bar |
| Design Pressure Low [psi] | 174 psi |
| Electrical code | Q |
| Fan Current (Condenser) [A] | 1.2 A |
| Fan current @ 60Hz [A] | 1.2 A |
| Fan diameter [mm] | 355 mm |
| Fan power consumption @ 60Hz [W] | 240 W |
| Fan power supply [V/Ph/Hz] | 230/1/60 |
| Fan Volt 60Hz Max (Cond.) [V] | 230 V |
| Fuse size Max | 15 |
| Max Current Ampacity [A] | 9.2 A |
| Model no. | HJZ018D32Q |
| Model number | OP-HJZ018D32Q |
| No. of phases (compressor) | 3 |
| No. of phases (fan) | 1 |
| Number of Fan | 1 |
| Number of fans | 1 |
| Phases of Compressor | 3 |
| Phases of Fan | 1 |
| Product description | Condensing Unit |
| Quantity per packing format | 1 pc |
| Receiver volume [L] | 3 L |
| Refrigerant | R134a R404A R448A R449A R452A R513A |
| Refrigerant1 | R404A |
| Refrigerant2 | R507 |
| Refrigerant3 | R134a |
| Region | Asia North America (excl. USA & Canada) Pacific South America |
| Segment usage | Medium Back Pressure |
| Technology | Reciprocating |
| Type | Optyma™ |
| Type designation | Condensing Units |
| Version | D32 |
| Volt 60Hz Nom Max [V] | 230 V |
| Volt 60Hz Nom Min [V] | 200 V |
| Wiring Diagram | 119-7927 |
