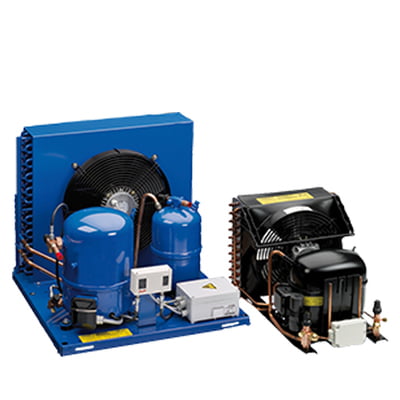

DANFOSS 114N3299 OPTYMA CONDENSING UNIT

TTD26,611.00

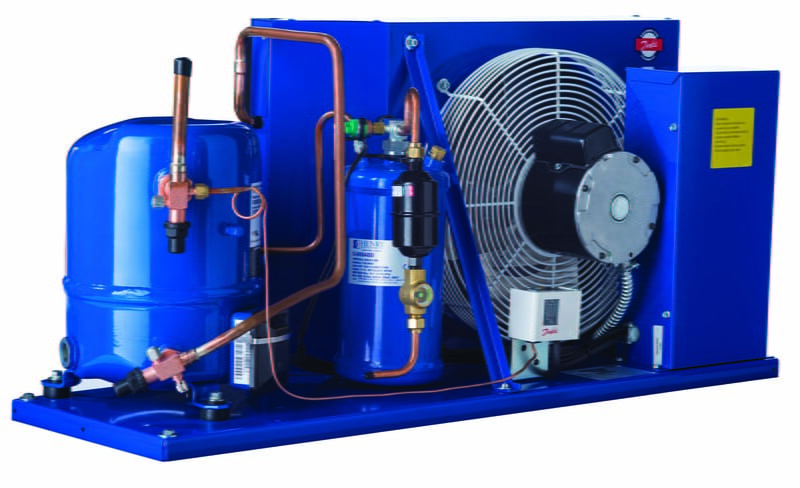

DANFOSS OPTYMA 40,000 BTU/h 5HP 220V 3PH 60Hz CONDENSING UNIT PART# HGZ064D40Q
Choose Quantity
+ Add to Cart
Product Details
Gross weight182 kg
Net weight167 kg
EAN5702428873505

ApplicationsHBP
MBP
BrandOptyma
Compressor Code noMTZ64-3VM
Compressor LRA [A]137 A
Compressor modelMTZ064-3
Compressor power supply [V/Ph/Hz]230/3/60
Compressor RLA [A]20.7 A
Compressor type designationMTZ64-3VM
Condenser typeN8
DescriptionOP-HGZ064D40Q
Design Pressure High [bar]23 bar
Design Pressure High [psi]331 psi
Design Pressure Low [bar]12 bar
Design Pressure Low [psi]174 psi
Electrical codeQ
Fan Current (Condenser) [A]3.6 A
Fan current @ 60Hz [A]3.6 A
Fan diameter [mm]457 mm
Fan power consumption @ 60Hz [W]450 W
Fan power supply [V/Ph/Hz]230/1/60
Fan Volt 60Hz Max (Cond.) [V]230 V
Fuse size Max50
Max Current Ampacity [A]33.1 A
Model no.HGZ064D40Q
Model numberOP-HGZ064D40Q
No. of phases (compressor)3
No. of phases (fan)1
Number of Fan2
Number of fans2
Phases of Compressor3
Phases of Fan1
Product descriptionCondensing Unit
Quantity per packing format1 pc
Receiver volume [L]10 L
RefrigerantR134a
R404A
R448A
R449A
R452A
R513A
RegionAsia
North America (excl. USA & Canada)
Pacific
South America
Segment usageMedium Back Pressure
TechnologyReciprocating
TypeOptyma™
Type designationCondensing Units
VersionD40
Volt 60Hz Nom Max [V]230 V
Volt 60Hz Nom Min [V]200 V
Wiring Diagram119-7927
