DANFOSS GX23TG
DANFOSS GX23TG
DANFOSS GX23TG

DANFOSS GX23TG

TTD1,955.00

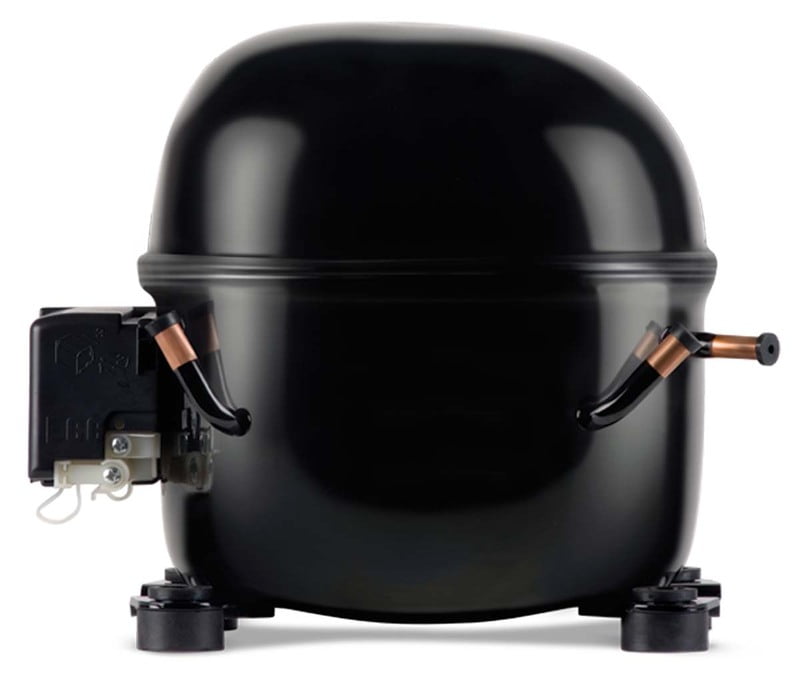

DANFOSS GX23TG R134A 208-230V 60Hz RECIPROCATING COMPRESSOR PART# 123B1548
Choose Quantity
+ Add to Cart
Product Details
Gross weight17.3 kg
Net weight17 kg
EAN5702428584593

ApplicationsHBP
MBP
Approval standardCCC
UL
VDE
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]15.27 Ohm
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlack
Compressor power supply [V/Ph/Hz]230/1/50 230/1/60
Configuration codeSingle
Cut in current HST 50Hz [A]32 A
Cut in current HST 60Hz [A]34 A
Cut in current HST [A]32 A
DescriptionGX23TG
Discharge connection angle [°]0 °
Discharge connection commentsRubber plug
Discharge connection diameter [mm]6.5 mm
Discharge connection height [mm]98 mm
Discharge connection materialCopper
EconomizerNo
Frequency [Hz]50/60
Height from baseplate [mm]221 mm
High value of nominal voltage at 50Hz [V]220 V
High value of nominal voltage at 60Hz [V]230 V
High value of voltage range at 50Hz [V]242 V
High value of voltage range at 60Hz [V]253 V
Low value of nominal voltage at 50Hz [V]200 V
Low value of nominal voltage at 60Hz [V]220 V
Low value of voltage range at 50Hz [V]170 V
Low value of voltage range at 60Hz [V]187 V
LRA HST 50Hz [A]32 A
LRA HST 60Hz [A]34 A
LRA HST [A]32 A
Main winding resistance for single-phase compressors [Ohm]1.79 Ohm
MCC9.00 A
Model numberGX23TG
Motor typeCSIR
No. of phases (compressor)1
Nominal cooling capacity 60 kBTU/h8.08 kBtu/h
Nominal cooling capacity at 60Hz2.4 kW
Oil quantity [cm3]500 cm³
Oil typePOE
Packing formatIndustrial pack
Packing quantity1
Process connection angle [°]30 °
Process connection commentsRubber plug
Process connection diameter [mm]9.7 mm
Process connection materialCopper
RefrigerantR134a
Refrigerant charge [kg] [Max]1.4 kg
Rotational speed at 50Hz [rpm]3000 rpm
Rotational speed at 60Hz [rpm]3600 rpm
Segment usageRefrigeration MT
Start capacitor capacitance72-88 µF
Suction connection angle [°]30 °
Suction connection commentsRubber plug
Suction connection diameter [mm]9.7 mm
Suction connection height [mm]103 mm
Suction connection materialCopper
Swept volume [cm3]23.2 cm³
TechnologyReciprocating
Total height [mm]230 mm
TypeX
Type designationCompressor
Voltage 50Hz [V]200 V
Voltage 50Hz [V] [Max]220 V
Voltage 60Hz [V]220 V
Voltage 60Hz [V] [Max]230 V
Winding temperature short term [°C] [Max]135 °C
Winding temperature stat [°C] [Max]115 °C
