DANFOSS GS30TG

DANFOSS GS30TG

TTD2,395.00

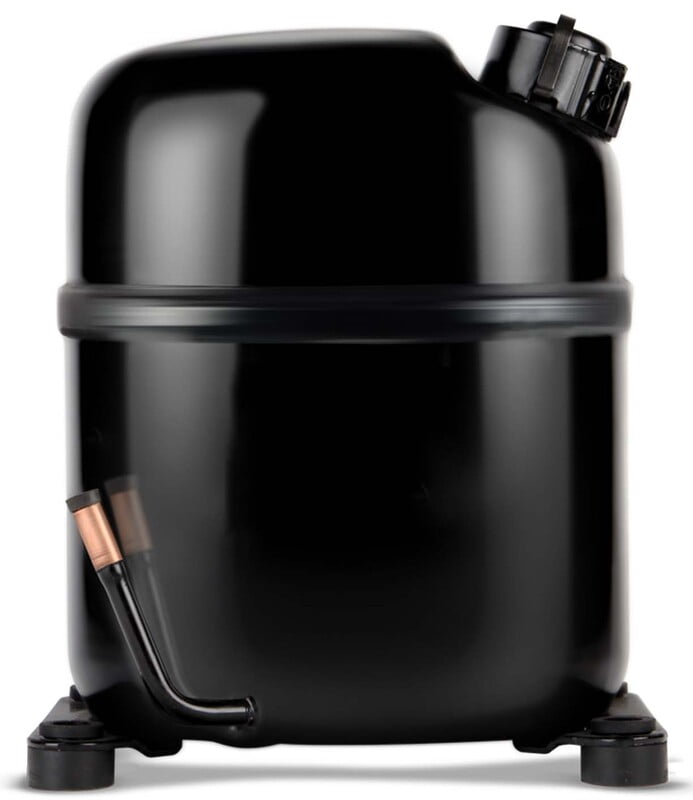

DANFOSS GS30TG R134A 208-230V 60Hz RECIPROCATING COMPRESSOR PART# 123B1553
Choose Quantity
+ Add to Cart
Product Details
Gross weight23.4 kg
Net weight23 kg
EAN5702428584579

ApplicationsHBP
MBP
Approval standardUL
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]7.44 Ohm
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlack
Compressor power supply [V/Ph/Hz]230/1/50 230/1/60
Configuration codeSingle
Cut in current HST 50Hz [A]36 A
Cut in current HST 60Hz [A]38 A
Cut in current HST [A]36 A
DescriptionGS30TG
Discharge connection angle [°]63 °
Discharge connection commentsRubber plug
Discharge connection diameter [mm]8 mm
Discharge connection height [mm]82 mm
Discharge connection materialCopper
EconomizerNo
Frequency [Hz]50/60
Height from baseplate [mm]276 mm
High value of nominal voltage at 50Hz [V]220 V
High value of nominal voltage at 60Hz [V]230 V
High value of voltage range at 50Hz [V]242 V
High value of voltage range at 60Hz [V]253 V
Low value of nominal voltage at 50Hz [V]200 V
Low value of nominal voltage at 60Hz [V]220 V
Low value of voltage range at 50Hz [V]170 V
Low value of voltage range at 60Hz [V]187 V
LRA HST 50Hz [A]36 A
LRA HST 60Hz [A]38 A
LRA HST [A]36 A
Main winding resistance for single-phase compressors [Ohm]1.53 Ohm
MCC10.00 A
Model numberGS30TG
Motor typeCSR
No. of phases (compressor)1
Nominal cooling capacity 60 kBTU/h11.58 kBtu/h
Nominal cooling capacity at 60Hz3.4 kW
Oil quantity [cm3]860 cm³
Oil typePOE
Packing formatIndustrial pack
Packing quantity1
Process connection angle [°]0 °
Process connection commentsRubber plug
Process connection diameter [mm]9.65 mm
Process connection materialCopper
RefrigerantR134a
Refrigerant charge [kg] [Max]1.7 kg
Rotational speed at 50Hz [rpm]3000 rpm
Rotational speed at 60Hz [rpm]3600 rpm
Run capacitor capacitance16 µF
Segment usageRefrigeration MT
Start capacitor capacitance88-108 µF
Suction connection angle [°]0 °
Suction connection commentsRubber plug
Suction connection diameter [mm]12.7 mm
Suction connection height [mm]264 mm
Suction connection materialCopper
Swept volume [cm3]29.95 cm³
TechnologyReciprocating
Total height [mm]282 mm
TypeS
Type designationCompressor
Voltage 50Hz [V]200 V
Voltage 50Hz [V] [Max]220 V
Voltage 60Hz [V]220 V
Voltage 60Hz [V] [Max]230 V
Winding temperature short term [°F] [Max]135 °C
Winding temperature stat [°C] [Max]115 °C
