DANFOSS GPY16RDA

DANFOSS GPY16RDA

TTD1,395.00

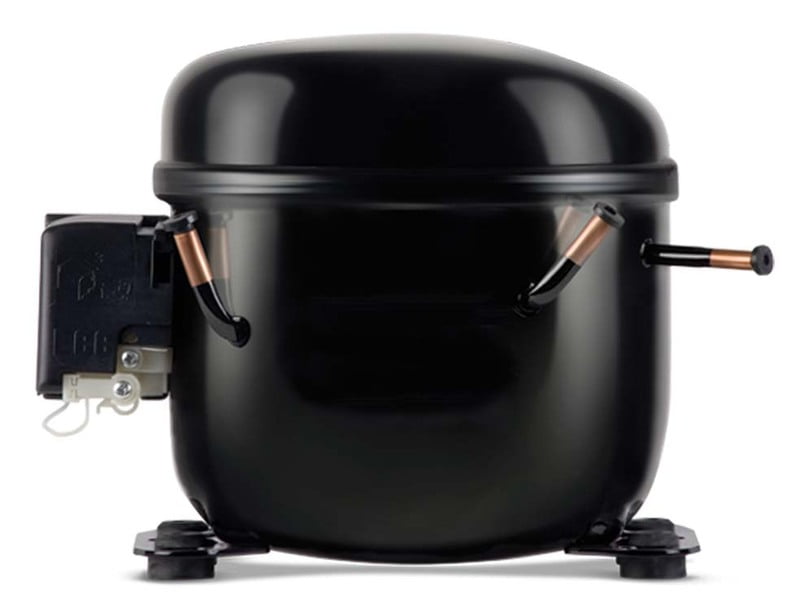

DANFOSS GPY16RDA R134A 115V 60Hz RECIPROCATING COMPRESSSOR PART# 123B1588
Choose Quantity
+ Add to Cart
Product Details
Gross weight12.8 kg
Net weight12.5 kg
EAN5702428584470

ApplicationsHBP
MBP
Approval standardUL
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]4.6 Ohm
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlack
Compressor power supply [V/Ph/Hz]115/1/60
Configuration codeSingle
Cut in current HST 60Hz [A]46 A
DescriptionGPY16RDa
Discharge connection angle [°]0 °
Discharge connection commentsRubber plug
Discharge connection diameter [mm]6.5 mm
Discharge connection height [mm]121 mm
Discharge connection materialCopper
EconomizerNo
Frequency [Hz]60
Height from baseplate [mm]211 mm
High value of nominal voltage at 60Hz [V]115 V
High value of voltage range at 60Hz [V]132 V
Low value of nominal voltage at 60Hz [V]115 V
Low value of voltage range at 60Hz [V]98 V
LRA HST 60Hz [A]46 A
Main winding resistance for single-phase compressors [Ohm]1 Ohm
MCC12.50 A
Model numberGPY16RDa
Motor typeCSIR
No. of phases (compressor)1
Nominal cooling capacity 60 kBTU/h6.05 kBtu/h
Nominal cooling capacity at 60Hz1.8 kW
Oil quantity [cm3]400 cm³
Oil typePOE
Packing formatIndustrial pack
Packing quantity1
Process connection angle [°]50 °
Process connection commentsRubber plug
Process connection diameter [mm]8.1 mm
Process connection materialCopper
RefrigerantR134a
Refrigerant charge [kg] [Max]1.15 kg
Rotational speed at 60Hz [rpm]3600 rpm
Segment usageRefrigeration MT
Start capacitor capacitance250 µF
Suction connection angle [°]20 °
Suction connection commentsRubber plug
Suction connection diameter [mm]8.1 mm
Suction connection height [mm]125 mm
Suction connection materialCopper
Swept volume [cm3]16.15 cm³
TechnologyReciprocating
Total height [mm]217 mm
TypeP
Type designationCompressor
Voltage 60Hz [V]115 V
Voltage 60Hz [V] [Max]115 V
Winding temperature short term [°C] [Max]135 °C
Winding temperature stat [°C] [Max]115 °C
