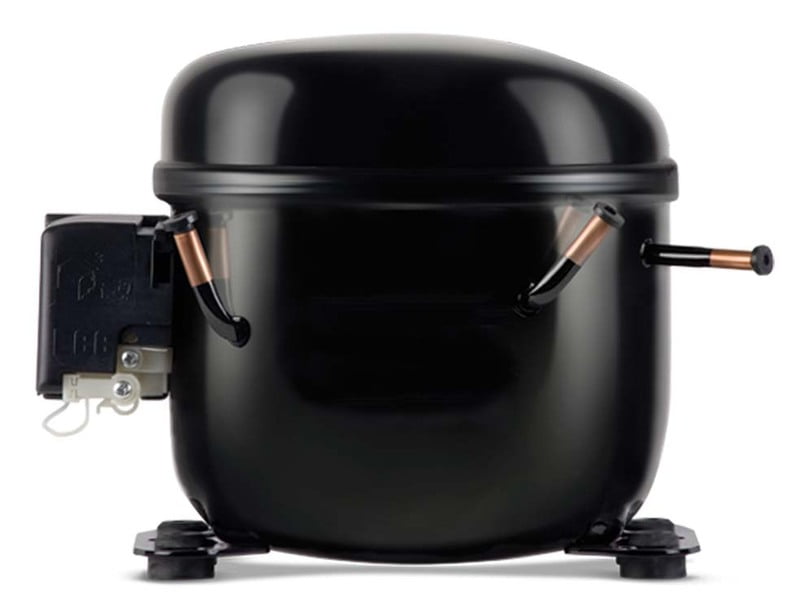

DANFOSS GL80TE

DANFOSS GL80TE

TTD998.00
DANFOSS GL80TE R134A 50/60Hz 115-127V RECIPROCATING COMPRESSOR PART# 123B1575
Choose Quantity
+ Add to Cart
Product Details
Gross weight10.3 kg
Net weight10.1 kg
EAN5702428584548

ApplicationsHBP
MBP
Approval standardUL
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]8.97 Ohm
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlack
Compressor power supply [V/Ph/Hz]115/1/60
Configuration codeSingle
Cut in current HST 50Hz [A]24 A
Cut in current HST [A]24 A
DescriptionGL80TE
Discharge connection angle [°]0 °
Discharge connection commentsRubber plug
Discharge connection diameter [mm]4.9 mm
Discharge connection height [mm]108 mm
Discharge connection materialCopper
EconomizerNo
Frequency [Hz]60
Height from baseplate [mm]186 mm
High value of nominal voltage at 60Hz [V]115 V
High value of voltage range at 60Hz [V]132 V
Low value of nominal voltage at 60Hz [V]115 V
Low value of voltage range at 60Hz [V]98 V
LRA HST 50Hz [A]24 A
LRA HST [A]24 A
Main winding resistance for single-phase compressors [Ohm]1.73 Ohm
MCC6.50 A
Model numberGL80TE
Motor typeCSIR
No. of phases (compressor)1
Nominal cooling capacity 60 kBTU/h2.59 kBtu/h
Nominal cooling capacity at 60Hz0.8 kW
Oil quantity [cm3]300 cm³
Oil typePOE
Packing formatIndustrial pack
Packing quantity1
Process connection angle [°]50 °
Process connection commentsRubber plug
Process connection diameter [mm]6.5 mm
Process connection materialCopper
RefrigerantR134a
Refrigerant charge [kg] [Max]1.15 kg
Rotational speed at 60Hz [rpm]3600 rpm
Segment usageRefrigeration MT
Start capacitor capacitance170 µF
Suction connection angle [°]20 °
Suction connection commentsRubber plug
Suction connection diameter [mm]6.5 mm
Suction connection height [mm]113 mm
Suction connection materialCopper
Swept volume [cm3]7.57 cm³
TechnologyReciprocating
Total height [mm]192 mm
TypeL
Type designationCompressor
Voltage 60Hz [V]115 V
Voltage 60Hz [V] [Max]115 V
Winding temperature short term [°F] [Max]135 °C
Winding temperature stat [°C] [Max]115 °C
