DANFOSS GL80ADb

DANFOSS GL80ADb

TTD899.00

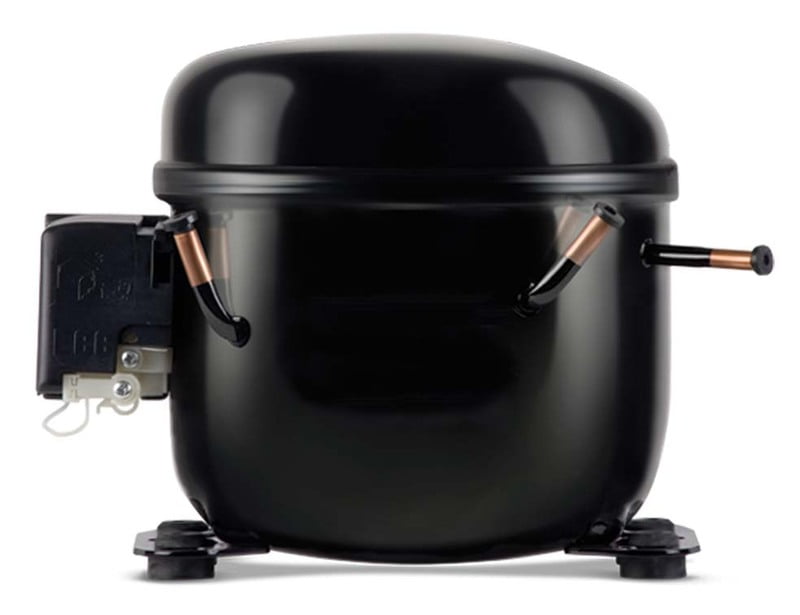

DANFOSS GL80ADb R134A 60Hz 115-127V RECIPROCATING COMPRESSOR PART# 123B1158
Choose Quantity
+ Add to Cart
Product Details
Gross weight10 kg
Net weight9.8 kg

ApplicationsLBP
Approval standardUL
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]4.59 Ohm
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlack
Compressor power supply [V/Ph/Hz]115/1/60
Configuration codeSingle
Cut in current HST 60Hz [A]27.3 A
DescriptionGL80ADb
Discharge connection angle [°]0 °
Discharge connection commentsRubber plug
Discharge connection diameter [mm]4.9 mm
Discharge connection height [mm]108 mm
Discharge connection materialCopper
EconomizerNo
Frequency [Hz]60
Height from baseplate [mm]186 mm
High value of nominal voltage at 60Hz [V]115 V
High value of voltage range at 60Hz [V]132 V
Low value of nominal voltage at 60Hz [V]115 V
Low value of voltage range at 60Hz [V]98 V
LRA HST 60Hz [A]27.3 A
Main winding resistance for single-phase compressors [Ohm]1.78 Ohm
MCC4.50 A
Model numberGL80ADb
Motor typeCSIR
No. of phases (compressor)1
Oil quantity [cm3]345 cm³
Oil typePOE
Packing formatIndustrial pack
Packing quantity1
Process connection angle [°]50 °
Process connection commentsRubber plug
Process connection diameter [mm]6.5 mm
Process connection materialCopper
RefrigerantR134a
Refrigerant charge [kg] [Max]1.15 kg
Rotational speed at 60Hz [rpm]3600 rpm
Segment usageRefrigeration LT
Start capacitor capacitance170 µF
Suction connection angle [°]20 °
Suction connection commentsRubber plug
Suction connection diameter [mm]6.5 mm
Suction connection height [mm]113 mm
Suction connection materialCopper
Swept volume [cm3]8.1 cm³
TechnologyReciprocating
Total height [mm]192 mm
TypeL
Type designationCompressor
Voltage 60Hz [V]115 V
Voltage 60Hz [V] [Max]115 V
Winding temperature short term [°F] [Max]135 °C
Winding temperature stat [°C] [Max]115 °C
