TTD40,138.00

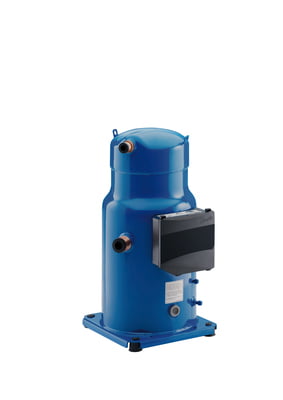

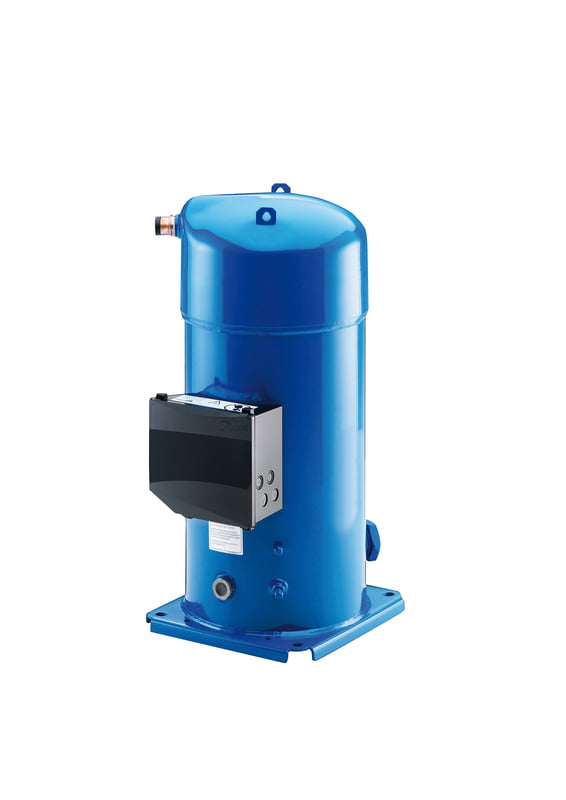

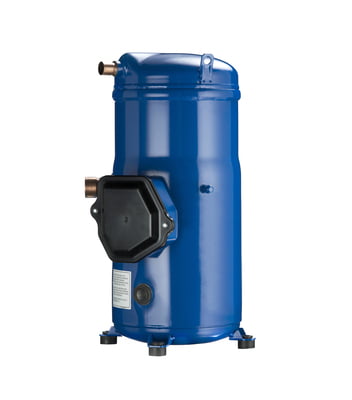

DANFOSS 25 TON 460V 3PH 60Hz SCROLL COMPRESSOR PART# 120H0825
Choose Quantity
+ Add to Cart
Product Details
Gross weight121 kg
Net weight111 kg
EAN5702428572972

Approval standardCE
UL
Brand techniqueScroll compressor
Capacity controlFixed speed
ColourBlue
Compressor power supply [V/Ph/Hz]400/3/50 460/3/60
Configuration codeSingle
Connection typeBrazed
DescriptionSH295-4
Diameter [mm]318 mm
Discharge connection height [mm]648 mm
Discharge connection pipe size [in]1 1/8 in
Discharge connection size [in]1 1/8 in
Drawing number8556089g
EconomizerNo
Factory HP [bar]0 bar
Factory LP [bar]0 bar
Fitting standardODF
Frequency [Hz]50/60
Gauge port HPNone
Gauge port LPSchrader
Generation codeA
Glass mountingThreaded
Glass torque [Nm]50 N-m
High side max pressure (Ps)48.7 bar
High Side TS Max150 °C
High Side TS Min-35 °C
High Side Volume2.5 L
High value of nominal voltage at 50Hz [V]415 V
High value of nominal voltage at 60Hz [V]460 V
High value of voltage range at 50Hz [V]457 V
High value of voltage range at 60Hz [V]506 V
IP protection classIP54 (with cable gland)
Low side max pressure (Ps)31.1 bar
Low Side TS Max52 °C
Low Side TS Min-35 °C
Low Side Volume28.5 L
Low value of nominal voltage at 50Hz [V]380 V
Low value of nominal voltage at 60Hz [V]460 V
Low value of voltage range at 50Hz [V]340 V
Low value of voltage range at 60Hz [V]414 V
LRA260 A
MCC62 A
Model numberSH295A4AAE
Motor protectionElectronic protection module, 24 V ac
Mounting torque [Nm]21 N-m
Nominal cooling capacity 60 kBTU/h302.08 kBtu/h
Nominal cooling capacity at 60Hz88.5 kW
Number of starts per hour [Max]12
Oil charge [L]6.7 L
Oil drain1/4'' flare
Oil equalization2-1/4'' Rotolock
Oil reference160SZ
Packaging height [mm]698 mm
Packaging length [mm]470 mm
Packaging weight [Kg]119 kg
Packaging width [mm]400 mm
Packing formatSingle pack
Packing quantity1
Phase3
Power connectionsScrew 4.8 mm
RefrigerantR410A
Refrigerant charge [kg] [Max]13.5 kg
Relief valveNone
Reverse rotation protectionElectronic module
RLA44.3 A
Rotational speed at 50Hz [rpm]2900 rpm
Rotational speed at 60Hz [rpm]3500 rpm
Segment usageAir conditioning
Shipped instructionsInstallation instructions
Shipped moduleElectronic protection module mounted in terminal box
Shipped mountingMounting kit with rigid grommets, bolts, nuts, sleeves and washers
Shipped oilInitial oil charge
Suction connection height [mm]331 mm
Suction connection pipe size [in]1 5/8 in
Suction connection size [in]1 5/8 in
Swept volume [cm3]276.2 cm³
TechnologyScroll
Test dif [bar] [Max]37 bar
Test HP [bar] [Max]48.7 bar
Test LP [bar] [Max]34.3 bar
Torque earth [Nm]2 N-m
Torque power [Nm]3 N-m
Total height [mm]683 mm
TypeSH
Type designationCompressor
Viscosity [cP]32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]0.52 Ohm
