DANFOSS 114N2324
DANFOSS 114N2324
DANFOSS 114N2324
DANFOSS 114N2324

DANFOSS 114N2324

TTD4,725.00

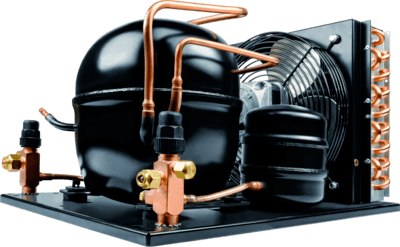

DANFOSS OPTYMA 1/3HP 115V SC10CL R404A CONDENSER MODEL# 114N2324
Choose Quantity
+ Add to Cart
Product Details
Gross weight27.45 kg
Net weight25.5 kg
EAN5702428390842

Air flow @ 60Hz [m³/h]830 m³/h
ApplicationsHBP
LBP
MBP
ApprovalC UR US
Approval standardUL listed
BrandOptyma
Compressor Code no104L1503
Compressor LRA [A]41.9 A
Compressor modelSC10CL
Compressor power supply [V/Ph/Hz]115/1/60
Compressor RLA [A]8.5 A
Compressor type designationSC10CL
Condenser typeBM72
DescriptionOP-UCHC0050UWC000B
Design Pressure High [bar]29 bar
Design Pressure High [psi]420 psi
Design Pressure Low [bar]12.3 bar
Design Pressure Low [psi]178 psi
Electrical codeB
Fan blade size [mm]254 mm
Fan Current (Condenser) [A]1 A
Fan current @ 60Hz [A]1 A
Fan power consumption @ 60Hz [W]60 W
Fan power output @ 60Hz [W]16 W
Fan power supply [V/Ph/Hz]115/1/60
Fan Volt 60Hz Max (Cond.) [V]115 V
Fan voltage @ 60Hz (max) [V] [Max]115 V
Fan voltage @ 60Hz (max) [V] [Min]115 V
Fuse size Max20
Length [mm]432 mm
Liquid line connection [in]1/4 in
Max Current Ampacity [A]11.8 A
Model no.UCHC0050RWB000B
Model numberOP-UCHC0050UWC000B
No. of phases (compressor)1
No. of phases (fan)1
Nominal cooling capacity 60 kBTU/h5.95 kBtu/h
Nominal cooling capacity at 60Hz1.7 kW
Number of Fan1
Number of fans1
Phases of Compressor1
Phases of Fan1
Product descriptionCondensing Unit
Quantity per packing format1 pc
Receiver approvalUL
Receiver volume [L]0.8 L
RefrigerantR404A
R507
RegionNorth America
RLA85 A
Segment usageLow Back Pressure
Medium Back Pressure
Universal
Suction connection size [in]3/8 in
TechnologyReciprocating
Total height [mm]300 mm
TypeOptyma™
Type designationCondensing Units
VersionWC
Volt 60Hz Nom Max [V]115 V
Voltage 60Hz [V]115 V
Voltage 60Hz [V] [Max]115 V
Width [mm]330 mm
Wiring Diagram119-3993
