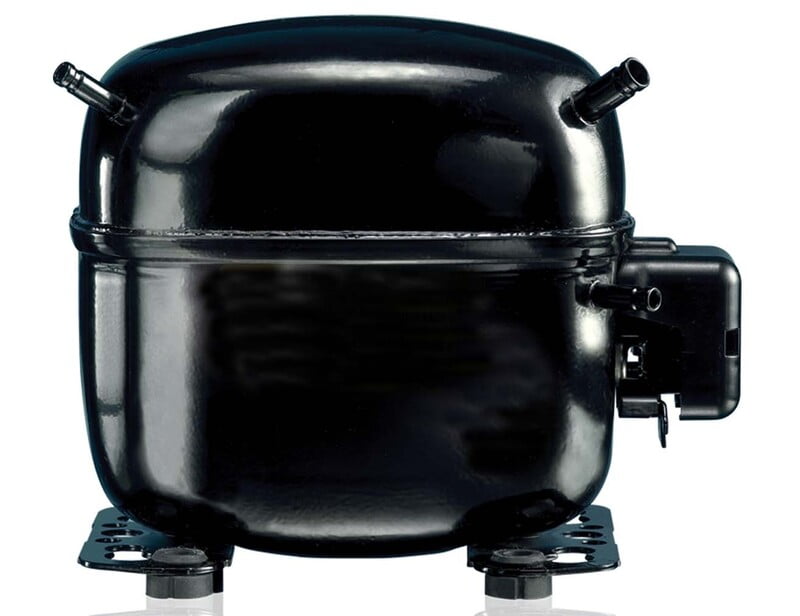

DANFOSS 114N0007 CONDENSING UNIT
TTD3,911.00
DANFOSS 6000 BTU/h 3/4 HP 115V 1PH 60Hz R134A CONDENSING UNIT PART# 114N0007
Choose Quantity
Product Details
| Gross weight | 11.79 kg |
| Net weight | 11.79 kg |
| EAN | 5702428547888 |
| Application energy level | Universal |
| Applications | HBP LBP MBP |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 2.7 Ohm |
| Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] | 2.7 Ohm |
| Base plate type | Universal |
| Brand technique | Reciprocating compressor |
| Capacity control | Fixed speed |
| Colour | Black |
| Compressor power supply [V/Ph/Hz] | 115/1/60 |
| Configuration code | Single |
| Cut in current HST [A] | 56.8 A |
| Description | SC18G |
| Discharge connection angle [°] | 37 ° |
| Discharge connection comments | Rubber plug |
| Discharge connection diameter [mm] | 6.5 mm |
| Discharge connection height [mm] | 110 mm |
| Discharge connection material | Copper |
| Economizer | No |
| Free gas volume [cm3] | 1460 cm³ |
| Frequency [Hz] | 60 |
| Height from baseplate [mm] | 213 mm |
| High value of nominal voltage at 50Hz [V] | 0 V |
| High value of nominal voltage at 60Hz [V] | 115 V |
| High value of voltage range at 50Hz [V] | 0 V |
| High value of voltage range at 60Hz [V] | 127 V |
| Length [mm] | 255 mm |
| Liquid injection | No |
| Low value of nominal voltage at 50Hz [V] | 0 V |
| Low value of nominal voltage at 60Hz [V] | 115 V |
| Low value of voltage range at 50Hz [V] | 0 V |
| Low value of voltage range at 60Hz [V] | 103 V |
| LRA HST 60Hz [A] | 56.8 A |
| LRA HST [A] | 56.8 A |
| Main winding resistance for single-phase compressors [Ohm] | 0.7 Ohm |
| Model number | SC18G |
| Motor type | CSIR |
| No. of phases (compressor) | 1 |
| No. of phases (fan) | 1 |
| Nominal cooling capacity 60 kBTU/h | 6.06 kBtu/h |
| Nominal cooling capacity at 60Hz | 1.8 kW |
| Oil quantity [cm3] | 600 cm³ |
| Oil type | POE |
| Packing format | Industrial pack |
| Packing quantity | 60 |
| Phase | 1 |
| Process connection angle [°] | 37 ° |
| Process connection comments | Rubber plug |
| Process connection diameter [mm] | 6.5 mm |
| Process connection height [mm] | 193 mm |
| Process connection material | Copper |
| Refrigerant | R134a |
| Refrigerant charge [kg] [Max] | 1.3 kg |
| RLA | 9.80 A |
| Rotational speed at 50Hz [rpm] | 0 rpm |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| Segment usage | Refrigeration LT Refrigeration MT Refrigeration HT |
| Start capacitor capacitance | 410 µF |
| Suction connection angle [°] | 37 ° |
| Suction connection comments | Rubber plug |
| Suction connection diameter [mm] | 9.63 mm |
| Suction connection height [mm] | 193 mm |
| Suction connection material | Copper |
| Swept volume [cm3] | 17.69 cm³ |
| Technology | Reciprocating |
| Total height [mm] | 219 mm |
| Type | SC |
| Type designation | Compressor |
| Voltage 60Hz [V] | 115 V |
| Voltage 60Hz [V] [Max] | 115 V |
| Width [mm] | 151 mm |
| Winding temperature short term [°C] [Max] | 135 °C |
| Winding temperature stat [°C] [Max] | 125 °C |
