DANFOSS 068Z3348
DANFOSS 068Z3348
DANFOSS 068Z3348

TEN2

TTD413.00

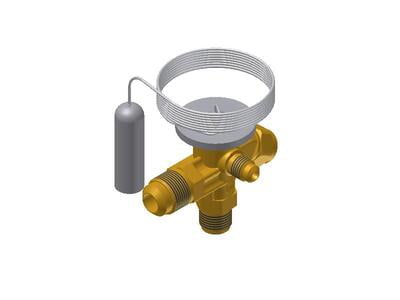

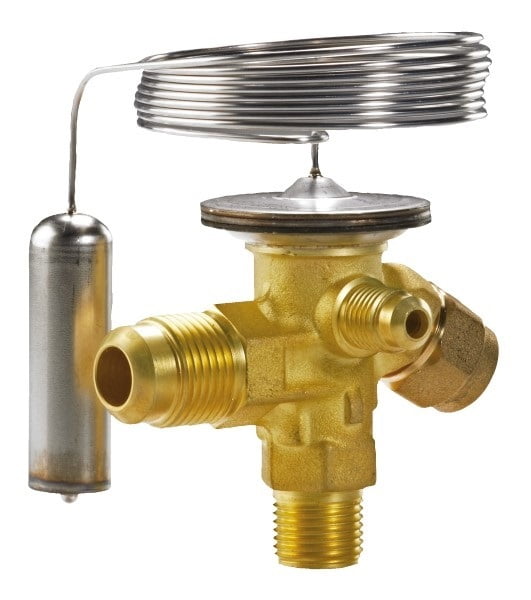

DANFOSS TEN2 R134A R513A THERMAL EXPANSION VALVE PART# 068Z3348
Quantity
Add to Cart
Product Details
Specifications
Gross weight0.31 kg
Net weight0.29 kg
EAN5702422124443

ApprovalEAC
LLC CDC TYSK
Body materialBrass
Capillary tube length [in]59 in
Capillary tube length [mm]1500 mm
CategoryArt. 4, par. 3
Connection materialBrass
DirectionAngleway
Equalization connection typeFLARE
Equalization size [in]1/4 IN
Factory setting (FS) [°C]6 °C
Flow directionBi-flow with orifice 01-05
Flow direction indicatorEmbossed 1-way arrow
Fluid GroupII
Identical product068Z3543
Inlet connection typeFLARE
Inlet size [in]3/8 IN
Max. Working Pressure [bar]34 bar
Max. Working Pressure [psig]500 psig
Outlet connection typeFLARE
Outlet size [in]1/2 IN
Packing formatMulti pack
Parts includedBulb strap
Parts Program nameT2/TE2
Pressure equalizationExternally equalized
Product accessoriesTXV accessories
Product family nameT2
Product groupExpansion valves
Product nameThermostatic expansion valve
Quantity per packing format20 pc
Rated cap. cond. Range N [IMP]OS=10.8 ºF
tcond=100 ºF
tevap=40 ºF
tliq=98 ºF
Rated cap. cond. Range N [SI]OS=6K
tcond=38 ºC
tevap=4.4 ºC
tliq=37 ºC
RefrigerantsR134a/R513A
ServiceableTXV spare parts
Static Superheat (SS) [°C]4 °C
Static Superheat (SS) [°F]7.2 °F
Superheat settingAdjustable
Temperature range [°C] [Max]10 °C
Temperature range [°C] [Min]-40 °C
Temperature range [°F] [Max]50 °F
Temperature range [°F] [Min]-40 °F
TypeTE 2
Compressor Specifications
  • Refrigerant
    R134A
