TTD830.00

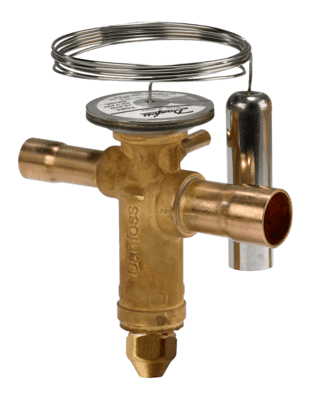

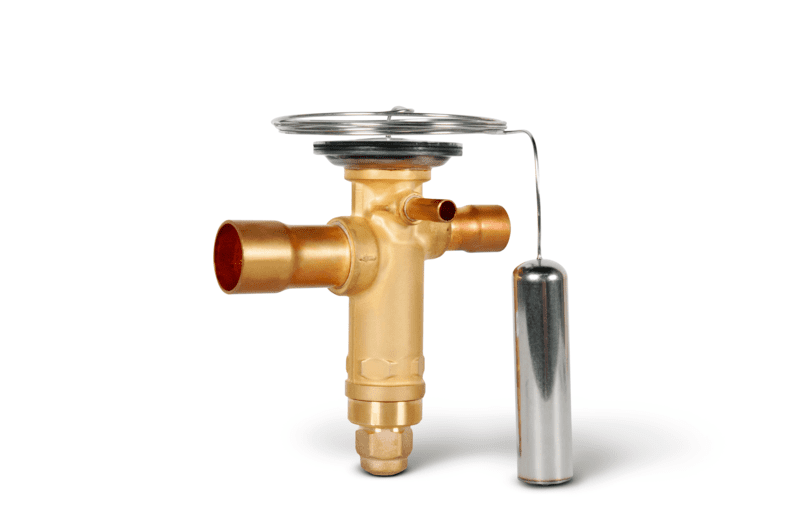

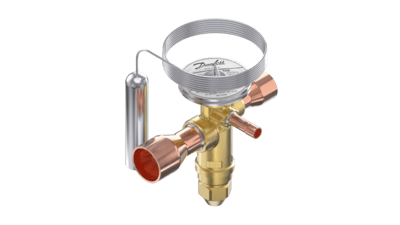

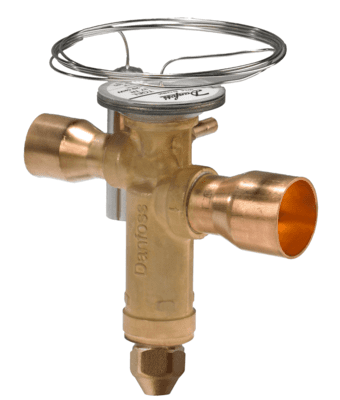

DANFOSS TGEL 19 TON R410A THERMOSTATIC EXPANSION VALVE PART# 067N3162
Choose Quantity
+ Add to Cart
Product Details
Gross weight0.8 kg
Net weight0.65 kg
EAN5702428140973

ApprovalC UL US LISTED
EAC
LLC CDC TYSK
Balanced port [Yes/No]Yes
Body materialBrass
Body size20
Bulb temperature max. [ºC]100 °C
Bulb temperature max. [ºF]210 °F
Capillary tube length [in]59 in
Capillary tube length [mm]1500 mm
Connection materialCopper
DirectionStraightway
Element temperature max. [°C]110 °C
Element temperature max. [°F]230 °F
Equalization connection typeSOLDER, ODF
Equalization size [in]1/4 IN
Factory setting (FS) [°C]5 °C
Flow directionBi-flow
Flow direction indicatorEmbossed 1-way arrow
Identical product067N3182
Inlet connection typeSOLDER, ODF
Inlet size [in]7/8 IN
Max. Working Pressure [bar]46 bar
Max. Working Pressure [psig]667 psig
Orifice capacities [kW]68 kW
Orifice capacities [TR]19 tons
Orifice size16
Outlet connection typeSOLDER, ODF
Outlet size [in]1 1/8 IN
Packing formatMulti pack
Parts includedBulb strap
Pressure equalizationExternally equalized
Product accessoriesTXV accessories
Product descriptionThermostatic Expans. Valve
Product family nameTGE
Product groupExpansion valves
Product nameThermostatic expansion valve
Quantity per packing format8 pc
Rated cap. cond. Range N [IMP]tcond=100 °F
tevap=40 °F
tliq=98 °F
Rated cap. cond. Range N [SI]tcond=38 °C
tevap=4.4 °C
tliq=37 °C
RefrigerantsR410A
ServiceableNo
Static Superheat (SS) [°C]4 °C
Static Superheat (SS) [°F]7.2 °F
Superheat settingAdjustable
Temperature range [°C] [Max]10 °C
Temperature range [°C] [Min]-40 °C
Temperature range [°F] [Max]50 °F
Temperature range [°F] [Min]-40 °F
TypeTGE
UL approved refrigerantsR410A
Valve body temp. max. [°C]100 °C
Valve body temp. max. [°F]210 °F
