DANFOSS 067N2005
DANFOSS 067N2005
DANFOSS 067N2005
DANFOSS 067N2005
DANFOSS 067N2005

DANFOSS 067N2005 067N9403

TTD0.00

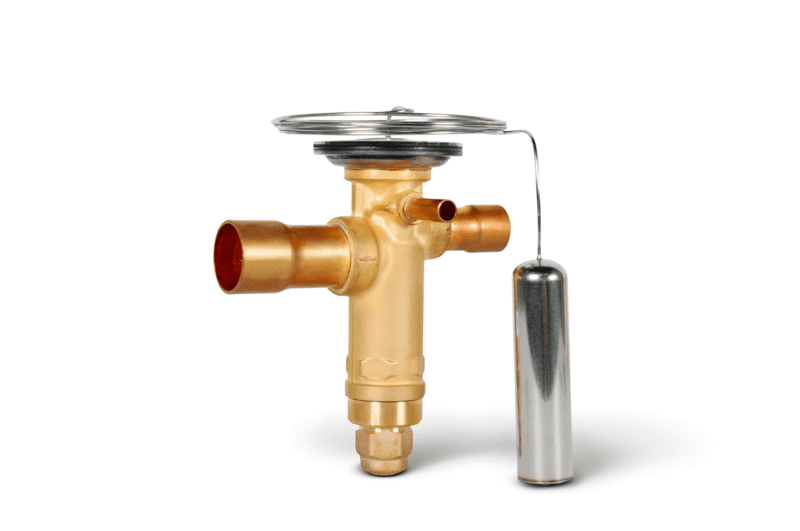

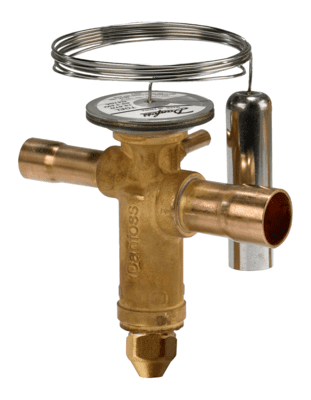

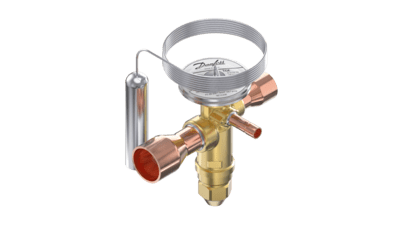

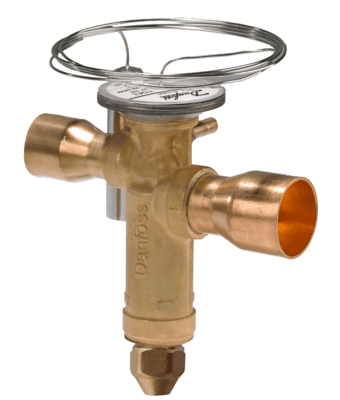

DANFOSS TGEX 6 TON R22 R407C THERMOSTATIC EXPANSION VALVE PART# 067N2005
Quantity
Add to Cart
Product Details
Gross weight0.49 kg
Net weight0.38 kg
EAN5702428138604

ApprovalC UL US LISTED
EAC
LLC CDC TYSK
Balanced port [Yes/No]Yes
Body materialBrass
Bulb temperature max. [ºC]150 °C
Bulb temperature max. [ºF]302 °F
Capillary tube length [in]59 in
Capillary tube length [mm]1500 mm
Connection materialCopper
DirectionStraightway
Element temperature max. [°C]110 °C
Element temperature max. [°F]230 °F
Equalization connection typeSOLDER, ODF
Equalization size [in]1/4 IN
Flow directionBi-flow
Flow direction indicatorEmbossed 1-way arrow
Identical product067N2025
Inlet connection typeSOLDER, ODF
Inlet size [in]5/8 IN
Max. Working Pressure [bar]46 bar
Max. Working Pressure [psig]667 psig
MOP Point [psig]MOP 100
MOP Point [°C]15 °C
MOP Point [°F]60 °F
Orifice capacities [kW]20 kW
Orifice capacities [TR]6 tons
Orifice size6
Outlet connection typeSOLDER, ODF
Outlet size [in]7/8 IN
Packing formatMulti pack
Parts includedBulb strap
Pressure equalizationExternally equalized
Product accessoriesTXV accessories
Product descriptionThermostatic Expans. Valve
Product family nameTGE
Product groupExpansion valves
Product nameThermostatic expansion valve
Quantity per packing format12 pc
Rated cap. cond. Range N [IMP]tcond=100 °F
tevap=40 °F
tliq=98 °F
Rated cap. cond. Range N [SI]tcond=38 °C
tevap=4.4 °C
tliq=37 °C
RefrigerantsR22/R407C
ServiceableNo
Static Superheat (SS) [°C]4 °C
Static Superheat (SS) [°F]7.2 °F
Superheat settingAdjustable
Temperature range [°C] [Max]10 °C
Temperature range [°C] [Min]-25 °C
Temperature range [°F] [Max]50 °F
Temperature range [°F] [Min]-15 °F
TypeTGE
UL approved refrigerantsR22;R407C
Valve body temp. max. [°C]150 °C
Valve body temp. max. [°F]302 °F
