DANFOSS 067L5956
TTD467.00

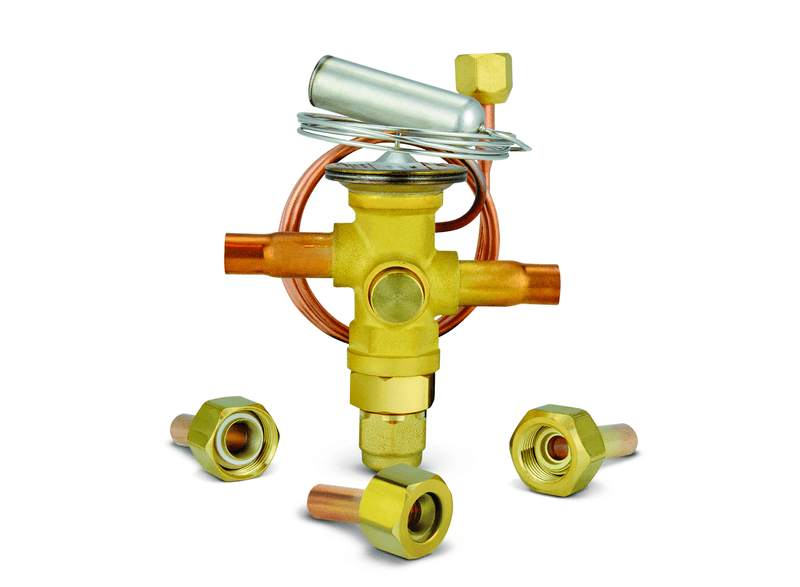

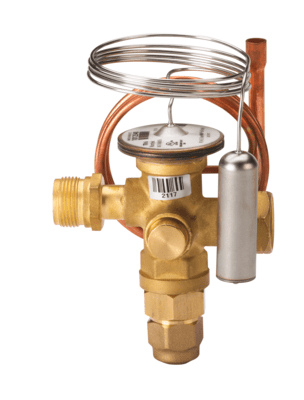

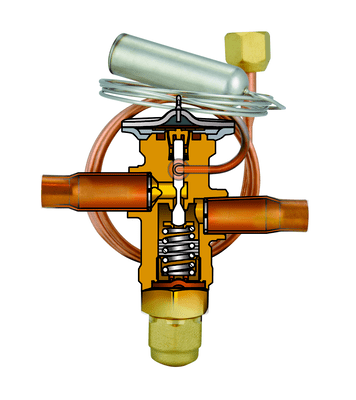

DANFOSS TR THERMOSTATIC EXPANSION VALVE 067L5956
Product Details
| Gross weight | 0.58 kg |
| Net weight | 0.58 kg |
| EAN | 5702428120029 |
| Adjustable | YES |
| Approval | C UL US |
| Balanced port [Yes/No] | Yes |
| Body material | Brass |
| Bulb temperature max. [ºC] | 100 °C |
| Bulb temperature max. [ºF] | 212 °F |
| Capillary tube length [in] | 31.5 in |
| Capillary tube length [mm] | 800 mm |
| Check valve | YES |
| Connection material | Copper |
| Direction | Straightway |
| Element temperature max. [°C] | 100 °C |
| Element temperature max. [°F] | 212 °F |
| Equal. Capillar tube lgt. [in] | 24.3 in |
| Equalization connection type | CAP. TUBE, FLARE |
| Equalization size [in] | 1/4 IN |
| Factory setting [psig] | 147.7 psig |
| Flow direction indicator | Embossed 1-way arrow |
| Further information | Adjustable |
| Inlet connection type | SOLDER, ODF |
| Inlet fitting variant | 067U0087 |
| Inlet size [in] | 3/8 IN |
| Max. Working Pressure [bar] | 45.5 bar |
| Max. Working Pressure [psig] | 660 psig |
| MOP Point [psig] | MAH |
| Orifice capacities [kW] | 14 kW |
| Orifice capacities [TR] | 4 tons |
| Orifice size | 4 |
| Outlet connection type | SOLDER, ODF |
| Outlet fitting variant | 067U0087 |
| Outlet size [in] | 3/8 IN |
| Packing format | Multi pack |
| Parts included | 1 Aeroquip female 5/8 in conne Bulb strap 1 Chatleff female 3/4 in conne 1 Flare 3/8 in connector Installation instruction Insulation tape |
| Port design | Balance port |
| Product accessories | TXV accessories |
| Product family name | TR6 |
| Product group | Expansion valves |
| Product name | Thermostatic expansion valve |
| Quantity per packing format | 12 pc |
| Refrigerants | R410A |
| Serviceable | No |
| Signature setting [bar] | 10.19 bar |
| Spring length [mm] | 21 mm |
| Static Superheat (SS) [°C] | 3.02 °C |
| Static Superheat (SS) [°F] | 5.44 °F |
| Temperature range [°C] [Max] | 15 °C |
| Temperature range [°C] [Min] | -10 °C |
| Temperature range [°F] [Max] | 60 °F |
| Temperature range [°F] [Min] | 15 °F |
| Type | TR 6 |
| UL approval file name | SA7200 |
| Valve body temp. max. [°C] | 110 °C |
| Valve body temp. max. [°F] | 230 °F |
