TTD467.00

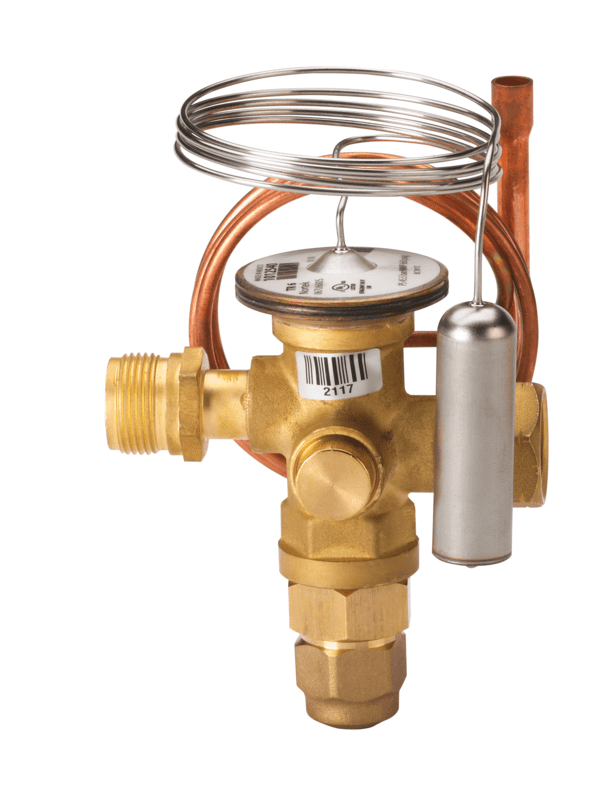

DANFOSS TR THERMOSTATIC EXPANSION VALVE PART# 067L5859
Quantity
Add to Cart
Product Details
Gross weight0.58 kg
Net weight0.58 kg
EAN5702428119870

AdjustableYES
ApprovalC UL US
Balanced port [Yes/No]Yes
Body materialBrass
Bulb temperature max. [ºC]100 °C
Bulb temperature max. [ºF]212 °F
Capillary tube length [in]31.5 in
Capillary tube length [mm]800 mm
Check valveYES
Connection materialCopper
DirectionStraightway
Element temperature max. [°C]100 °C
Element temperature max. [°F]212 °F
Equal. Capillar tube lgt. [in]24.3 in
Equalization connection typeCAP. TUBE, FLARE
Equalization size [in]1/4 IN
Factory setting (FS) [°C]5.03 °C
Factory setting [psig]104.8 psig
Flow direction indicatorEmbossed 1-way arrow
Further informationAdjustable
Inlet connection typeSOLDER, ODF
Inlet fitting variant067U0087
Inlet size [in]3/8 IN
Max. Working Pressure [bar]45.5 bar
Max. Working Pressure [psig]660 psig
MOP Point [psig]MAH
Orifice capacities [kW]23.6 kW
Orifice capacities [TR]6.7 tons
Orifice size7
Outlet connection typeSOLDER, ODF
Outlet fitting variant067U0087
Outlet size [in]3/8 IN
Packing formatMulti pack
Parts included1 Aeroquip female 5/8 in conne
Bulb strap
1 Chatleff female 3/4 in conne
1 Flare 3/8 in connector
Installation instruction
Insulation tape
Port designBalance port
Product accessoriesTXV accessories
Product family nameTR6
Product groupExpansion valves
Product nameThermostatic expansion valve
Quantity per packing format12 pc
RefrigerantsR22/R407C
ServiceableNo
Spring length [mm]21 mm
Static Superheat (SS) [°C]4.03 °C
Static Superheat (SS) [°F]39.25 °F
Temperature range [°C] [Max]15 °C
Temperature range [°C] [Min]-10 °C
Temperature range [°F] [Max]60 °F
Temperature range [°F] [Min]15 °F
TypeTR 6
UL approval file nameSA7200
Valve body temp. max. [°C]110 °C
Valve body temp. max. [°F]230 °F
