TTD957.00

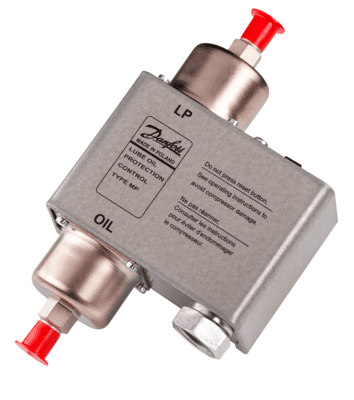

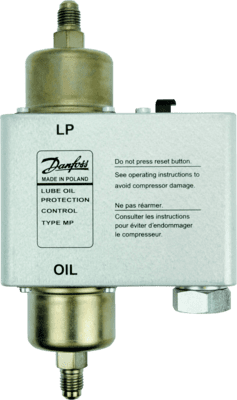

DANFOSS MP55 120s DIFFERENTIAL OIL PRESSURE SWITCH PART# 060B205766
Choose Quantity
+ Add to Cart
Product Details
Gross weight0.89 kg
Net weight0.81 kg
EAN5702428365970

AdjustmentCut out for falling pressure
Amb. Temp. NoteBellows max 100 °C/212 °F
Ambient temperature range [°C] [Max]60 °C
Ambient temperature range [°C] [Min]-40 °C
Ambient temperature range [°F] [Max]140 °F
Ambient temperature range [°F] [Min]-40 °F
Ammonia applicationNo
ApprovalCCC
CE
EAC
GL
LVD
RINA
RoHS
RoHS China
TYSK
c UL us UL873, CS C22.2
CMIM
LLC CDC EURO-TYSK
Approval file nameE31024
Cap. tube length fraction [in]36 in
Capillary tube length [mm]900 mm
Contact differential [bar]0.2 bar
Contact functionSPDT
Contact ratingAC=2 A, 250 V
DC=0.2 A, 240 V
Diff.press.setting range [bar] [Max]4.5 bar
Diff.press.setting range [bar] [Min]0.3 bar
Diff.press.setting range [MPa] [Max]0.45 MPa
Diff.press.setting range [MPa] [Min]0.03 MPa
Diff.press.setting range [psi] [Max]65 psi
Diff.press.setting range [psi] [Min]4.3 psi
Electrical conn. Male/FemaleFemale
Electrical connectionSwivel cable connector
Electrical connection sizeNPSM 1/2 - 14
Electrical connection standardANSI/ASME B1.20.1
EN 60947 electrical propertiesPollution degree: 3
Rated impulse voltage: 4 kV
Short circuit prot, fuse: 2A
EN 60947 wiring propertiesFlex, ferrules: 0.2-1.0 mm2
Flex, no ferrules: 0.2-1.5 mm2
Solid/stranded: 0.2-1.5 mm2
Enclosure rating IPIP20
EquipmentThermal time relay
Factory setting [bar]0.65 bar
Factory setting [psig]9 psig
Max. test pressure [bar] Pe22 bar
Max. test pressure [psig]319 psig
Max. Working Pressure [bar]17 bar
Max. Working Pressure [psig]245 psig
Operat. range LP side [bar] Pe [Max]12 bar
Operat. range LP side [bar] Pe [Min]-1 bar
Operat. range LP side [psig]Pe [Max]175 psig
Operat. range LP side [psig]Pe [Min]-15 psig
Packing formatMulti pack
Pressure connection size1/4 in
Pressure connection standardDIN 8912
Pressure connection typeFlare nut
Pressure Male/FemaleFemale
Product accessoriesGeneric accessories
Product descriptionDiff. Pressure Switch
Product family nameMP
Product groupSwitches and thermostats
Product nameDifferential pressure switch
Quantity per packing format21 pc
RefrigerantsR11
R113
R12
R124
R134a
R22
R404A
R407A
R407C
R407F
R407H
R422B
R422D
R438A
R448A
R449A
R450A
R452A
R507C
R513A
R449B
R515B
Relay release time [s]120 "
Reset functionManual Min
ServiceableNo
TypeMP55
