DANFOSS 060-5254
DANFOSS 060-5254
DANFOSS 060-5254

DANFOSS 060-5254

TTD1,130.00

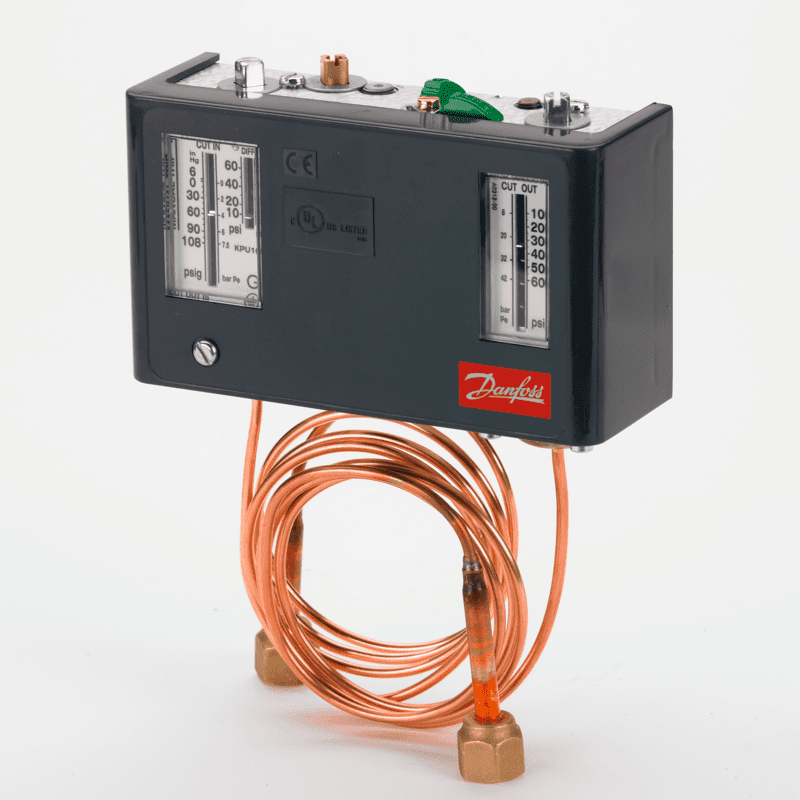

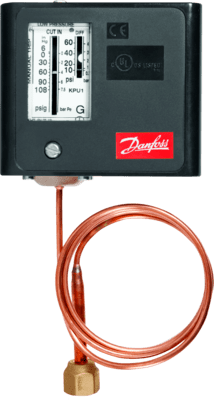

DANFOSS KPU16B DUAL PRESSURE CONTROL SWITCH PART# 060-5254
Choose Quantity
+ Add to Cart
Product Details
Gross weight1.03 kg
Net weight0.98 kg
EAN5702428064002

Amb. Temp. Note80 °C/176 °F for max 120 min
Ambient temperature range [°C] [Max]50 °C
Ambient temperature range [°C] [Min]-40 °C
Ambient temperature range [°F] [Max]122 °F
Ambient temperature range [°F] [Min]-40 °F
ApprovalCE
LVD
PED
RoHS
c UL us UL873, CS C22.2
Cap. tube length fraction [in]36 in
Capillary tube length [mm]900 mm
Contact functionSPDT+SPST(NO)
Contact rating144 A, 240 V ac
24 A, 240 V ac
DC=12 W pilot duty
FLA=24 A, 120 V ac
LRA = 144 A, 120 V ac
Differential left side [bar] [Max]4 bar
Differential left side [bar] [Min]0.7 bar
Differential left side [psi] [Max]60 psi
Differential left side [psi] [Min]10 psi
Differential right side [bar]4 bar
Differential right side [psi]60 psi
Electrical conn. commentsfor ½ in male pipe thread
Electrical connectionHole
Electrical connection size7/8 in
EN 60947 electrical propertiesPollution degree: 3
Rated impulse voltage: 4 kV
EN 60947 wiring propertiesFlex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2
Enclosure rating IPIP30
Enclosure rating Nema (~)1
MWP left side [bar] Pe17 bar
MWP left side [psig] Pe250 psig
MWP right side [bar] Pe46.5 bar
MWP right side [psig] Pe675 psig
Packing formatMulti pack
Pressure connection size1/4
Pressure connection standardDIN 8912
Pressure connection typeFlare nut
Pressure Male/FemaleFemale
Pressure sensing elementBellows
Product accessoriesSwitches accessories
Product descriptionDual Pressure Control
Product family nameKP Pressure switch
Product groupSwitches and thermostats
Product namePressure switch
Quantity per packing format10 pc
Refrigerant oil compatibilityOilfree applications
R134a
R513A
R515B
RefrigerantsR113
R124
R134a
R22
R404A
R407A
R407C
R407F
R407H
R410A
R422B
R422D
R438A
R448A
R449A
R450A
R452A
R507A
R513A
R515B
Regulation left side [bar]Pe [Max]7.5 bar
Regulation left side [bar]Pe [Min]-0.2 bar
Regulation left side range Pe6 inHg - 108 psig
Regulation right side [bar]Pe [Max]42 bar
Regulation right side [bar]Pe [Min]8 bar
Regulation right side [psig]Pe [Max]600 psig
Regulation right side [psig]Pe [Min]100 psig
Reset function, left sideMIN CONVERTIBLE
Reset function, right sideMAX CONVERTIBLE
ServiceableNo
TypeKPU16B
UL approval file nameE31024
