DANFOSS 060-200891
DANFOSS 060-200891
DANFOSS 060-200891

DANFOSS 060-200891

TTD1,232.00

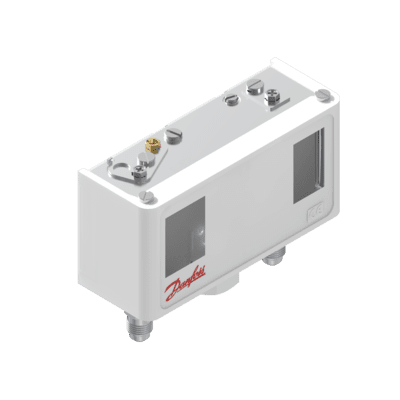

DANFOSS KP15 AUTO W/OUT CAP DUAL PRESSURE CONTROL SWITCH PART# 060-200891
Choose Quantity
+ Add to Cart
Product Details
Gross weight0.52 kg
Net weight0.46 kg
EAN5702428977357

Amb. Temp. Note80 °C/176 °F for max 120 min
Ambient temperature range [°C] [Max]65 °C
Ambient temperature range [°C] [Min]-40 °C
Ambient temperature range [°F] [Max]149 °F
Ambient temperature range [°F] [Min]-40 °F
ApprovalBV
CCC
CE
DNV
EAC
GL
LR
LVD
PZH
RINA
RMRS
RoHS China
c UL us UL873, CS C22.2
LLC CDC EURO-TYSK
Contact functionSPDT
Contact rating120Vac,16FLA,96LRA,3APilotDuty
16 A resistive, single phase
240 V ac, 8 FLA, 48 LRA
8 A resistive, single phase
240V dc,12W pilot duty(0.05 A)
Extra: 50VA,240V ac pilot duty
Differential left side [bar] [Max]4 bar
Differential left side [bar] [Min]0.7 bar
Differential left side [psi] [Max]58 psi
Differential left side [psi] [Min]10 psi
Differential right side [bar]4 bar
Differential right side [psi]58 psi
Electrical conn. Male/FemaleFemale
Electrical connectionSwivel cable connector
Electrical connection sizeNPSM 1/2 - 14
EN 60947 electrical propertiesPollution degree: 3
Rated impulse voltage: 4 kV
EN 60947 wiring propertiesFlex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2
Enclosure rating IPIP30
Enclosure rating Nema (~)1
Equipment
Lubricants compatibilityOilfree applications
Max.test press.left side[bar]20 bar
Max.test press.right side[bar]35 bar
MWP left side [bar] Pe17 bar
MWP left side [psig] Pe245 psig
MWP right side [bar] Pe32 bar
MWP right side [psig] Pe465 psig
Oil free refrigerantsR134a;R513A;R515B
Packing formatMulti pack
Pressure connection size1/4
Pressure connection standardDIN 8906
Pressure connection typeFlare
Pressure Male/FemaleMale
Pressure sensing elementBellows
Product accessoriesSwitches accessories
Product descriptionDual Pressure Control
Product family nameKP Pressure switch
Product groupSwitches and thermostats
Product namePressure switch
Quantity per packing format24 pc
Refrigerant oil compatibilityOilfree applications
R134a
R513A
R515B
RefrigerantsR113
R124
R134a
R22
R404A
R407A
R407C
R407F
R407H
R422B
R422D
R438A
R448A
R449A
R450A
R452A
R507A
R513A
R449B
R515B
Regulation left side [bar]Pe [Max]7.5 bar
Regulation left side [bar]Pe [Min]-0.2 bar
Regulation left side range Pe6 inHg - 108 psig
Regulation right side [bar]Pe [Max]32 bar
Regulation right side [bar]Pe [Min]8 bar
Regulation right side [psig]Pe [Max]464 psig
Regulation right side [psig]Pe [Min]116 psig
Reset function, left sideAuto
Reset function, right sideAuto
ServiceableNo
TypeKP15
UL approval file nameE31024
UL approved refrigerantsR113;R124;R134a;R22;R404A;R407A;R407C;R407F;R407H;R422B;R422D;R438A;R448A;R449A;R449B;R450A;R452A;R507A;R513A;R515B
