DANFOSS 032F8116

DANFOSS 032F8116

TTD453.00

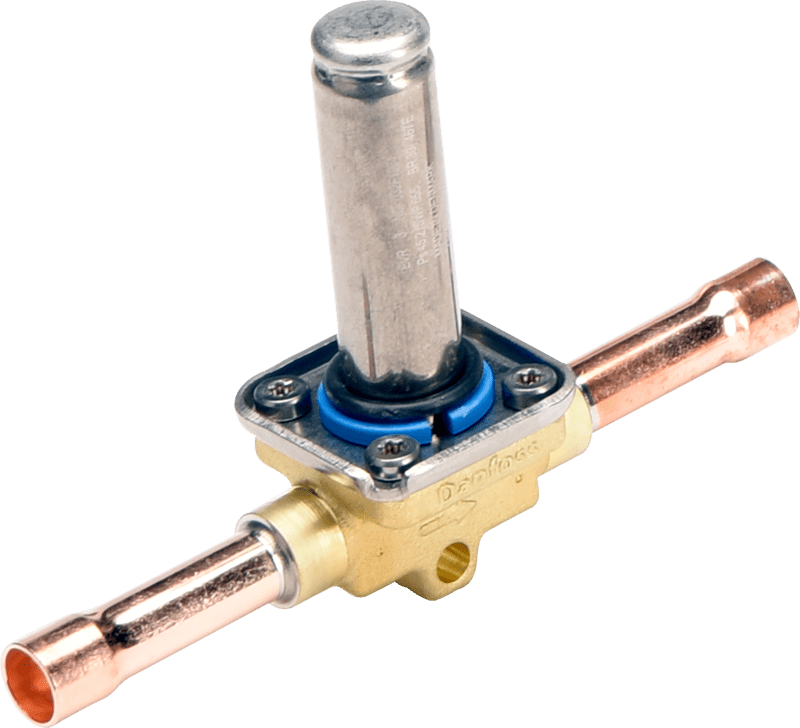

DANFOSS EVR 3 3/8" (SAE) FLARE SOLENOID VALVE PART# 032F8116
Choose Quantity
+ Add to Cart
Product Details
Gross weight0.26 kg
Net weight0.19 kg
EAN5702428093583

Actuator system [mm]13.5 mm
Ambient temperature-40 - 80 °C
Ambient temperature range [°F] [Max]175 °F
Ambient temperature range [°F] [Min]-40 °F
ApprovalEAC
LLC CDC TYSK
CoilNo
Cv value [gal/min]0.31 gal/min
DirectionStraightway
FunctionNC
Identical product032F8117
Inlet connection typeFLARE
Inlet size [in]3/8 IN
Inlet size [mm]10 mm
Kv value [m³/h]0.27 m³/h
Manual operation optionNo
Max. Working Pressure [bar]45.2 bar
Max. Working Pressure [psig]655 psig
MaxOPD[bar] 10W AC38 bar
MaxOPD[psi] 10W AC550 psi
Medium temp. range noteDefrost max 130°C/265°F
Medium temperature range [°C] [Max]105 °C
Medium temperature range [°C] [Min]-40 °C
Medium temperature range [°F] [Max]221 °F
Medium temperature range [°F] [Min]-40 °F
MinODP [bar]0 bar
MOPD[bar/psi]COIL DEPENDEND
Orifice size [mm]3.3 mm
Outlet connection typeFLARE
Outlet size [in]3/8 IN
Outlet size [mm]10 mm
Packing formatMulti pack
Parts Program nameEVR
Product family nameEVR
Product groupSolenoid valves
Product nameSolenoid valve
Quantity per packing format24 pc
RefrigerantsR125
R134a
R404A
R407A
R407F
R410A
R417A
R448A
R449A
R450A
R452A
R507
R513A
R407H
R413A
R422A
R422B
R422D
R438A
R447A
R449B
R463A
R513B
R515A
R515B
R442A
R447B
R512A
R22
R407C
R455A
TypeEVR 3
Type designationSolenoid valve
UL approved refrigerantsR125;R134a;R22;R404A;R407A;R407C;R407F;R407H;R410A;R413A;R417A;R422A;R422B;R422D;R438A;R442A;R447A;R447B;R448A;R449A;R449B;R450A
Valve operationDIRECT
