DANFOSS 032F1209

DANFOSS 032F1209

TTD597.00

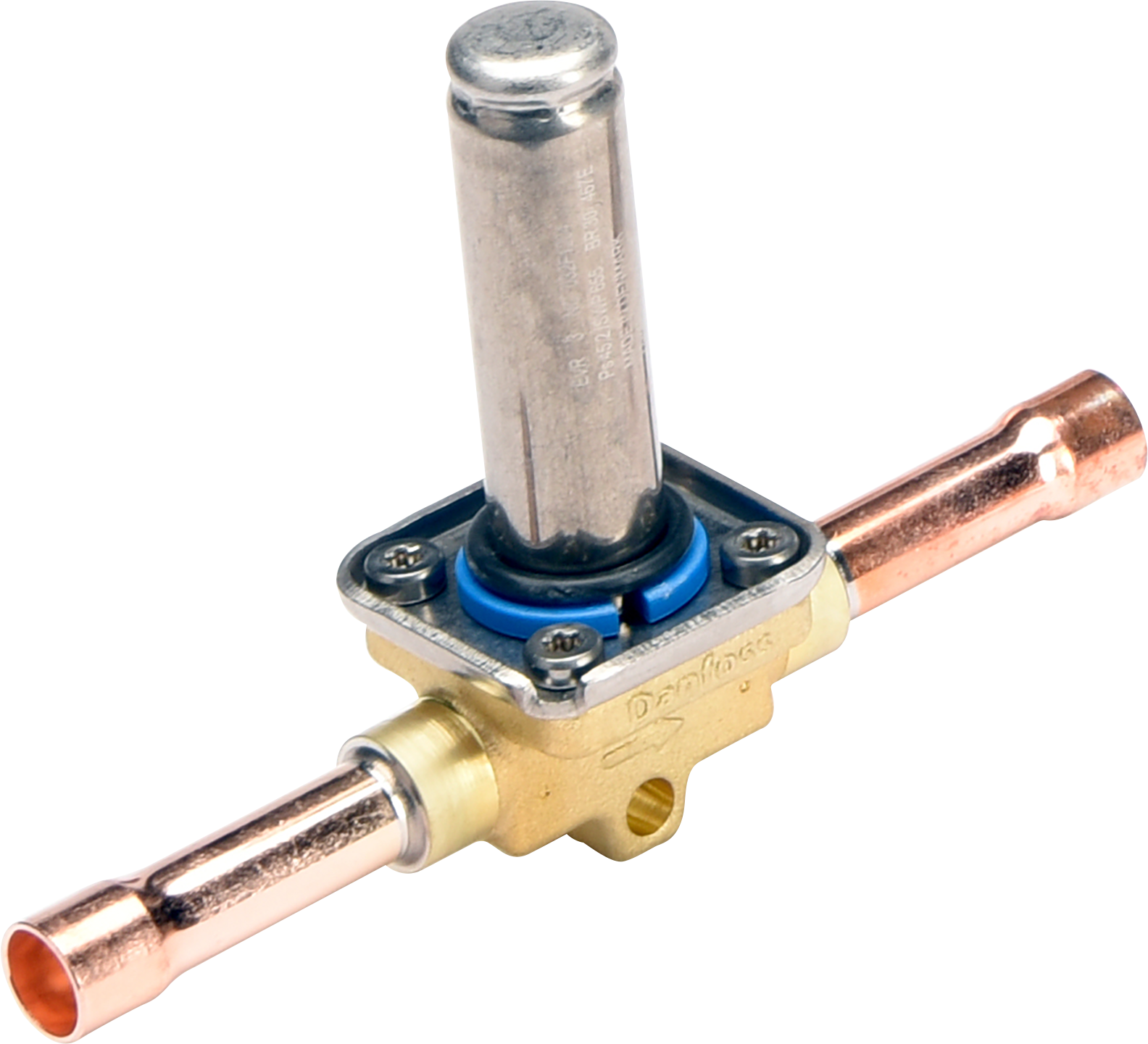

DANFOSS EVR6 SOLENOID VALVE 1/2" (ODF) SWEAT ON PART# 032F1209
Choose Quantity
+ Add to Cart
Product Details
Gross weight0.27 kg
Net weight0.19 kg
EAN5702428952910

Actuator system [mm]13.5 mm
Ambient temperature-40 - 80 °C
Ambient temperature range [°F] [Max]175 °F
Ambient temperature range [°F] [Min]-40 °F
ApprovalUL
EAC
LLC CDC EURO-TYSK
CoilNo
Cv value [gal/min]1.15 gal/min
DirectionStraightway
FunctionNC
Identical product032L7308
Inlet connection typeSOLDER, ODF
Inlet size [in]1/2 IN
Kv value [m³/h]1 m³/h
Manual operation optionNo
Max. Working Pressure [bar]45.2 bar
Max. Working Pressure [psig]655 psig
MaxOPD[bar] 10W AC38 bar
MaxOPD[bar] 20W DC28 bar
MaxOPD[bar] coil BJ/BX38 bar
MaxOPD[psi] 10W AC550 psi
MaxOPD[psi] 20W DC406 psi
MaxOPD[psi] coil BJ/BX550 psi
Medium temp. range noteDefrost max 130°C/265°F
Medium temperature range [°C] [Max]105 °C
Medium temperature range [°C] [Min]-40 °C
Medium temperature range [°F] [Max]221 °F
Medium temperature range [°F] [Min]-40 °F
MinODP [bar]0.03 bar
MinODP [psi]0.44 psi
MOPD[bar/psi]COIL DEPENDEND
MWP [bar] PED compliant49 bar
Orifice size [mm]6 mm
Outlet connection typeSOLDER, ODF
Outlet size [in]1/2 IN
Packing formatMulti pack
Parts Program nameEVR
Product family nameEVR v2
Product groupSolenoid valves
Product nameSolenoid valve
Quantity per packing format12 pc
RefrigerantsR1234yf
R125
R134a
R152a
R22
R290
R32
R404A
R407A
R407C
R407F
R410A
R417A
R448A
R449A
R450A
R452A
R507
R600
R600a
R513A
R452B
R454B
R1234ze(E)
R407H
R413A
R422A
R422B
R422D
R438A
R444B
R447A
R449B
R454C
R455A
R463A
R513B
R515A
R515B
R516A
R442A
R447B
R512A
R454A
TypeEVR 6
Type designationSolenoid valve, Solder
UL approved refrigerantsR125;R134a;R152a;R22;R404A;R407A;R407C;R407F;R407H;R410A;R413A;R417A;R422A;R422B;R422D;R438A;R442A;R447A;R447B;R448A;R449A;R449B
Valve operationSERVO-DIAPHRAGM
