DANFOSS 020-1011
DANFOSS 020-1011
DANFOSS 020-1011

DANFOSS 020-1011

TTD260.00

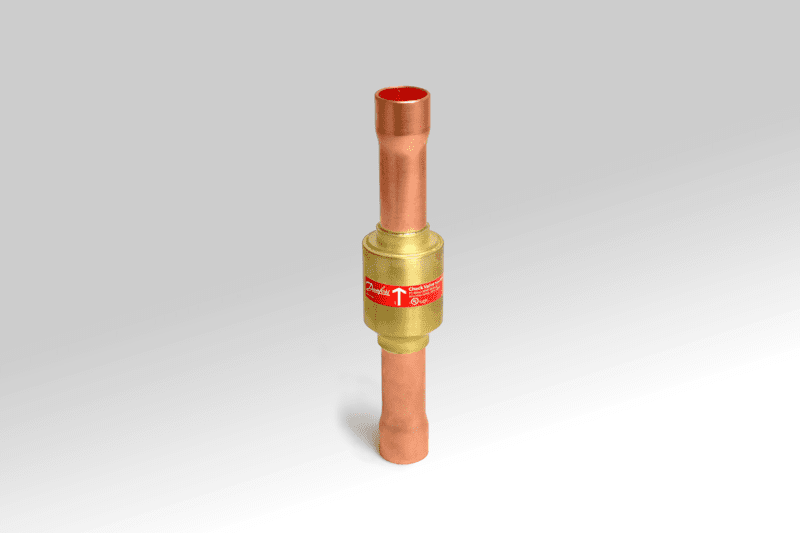

DANFOSS NRV 10s 3/8 ODF CHECK VALVE PART# 020-1011"
Choose Quantity
+ Add to Cart
Product Details
Gross weight0.07 kg
Net weight0.05 kg
EAN5702422046875

ApprovalC UL US LISTED
EAC
Body materialBrass
Connection materialCopper
Cv value [gal/min]1.39 gal/min
DesignPiston
DirectionStraightway
EN13463-3 ignit. source assessYes
Flow directionSingle-flow
Flow direction indicatorOn product label
Identical product020-1168
Inlet connection typeSOLDER, ODF
Inlet size [in]3/8 IN
Kv value [m³/h]1.2 m³/h
Max. Working Pressure [bar]46 bar
Max. Working Pressure [psig]667 psig
Min. Pressure drop [bar]0.07 bar
Min. Pressure drop [psi]1 psi
Outlet connection typeSOLDER, ODF
Outlet size [in]3/8 IN
Packing formatMulti pack
Product family nameNRV
Product groupCheck valves
Product nameCheck valve
Quantity per packing format25 pc
Rated cap cond, Hot gas [IMP]tcond=86 °F
tdisc=176 °F
tevap=14 °F
thotgas=140 °F
tsub=9 °F
Rated cap cond, Hot gas [SI]tcond=30 °C
tdisc=80 °C
tevap=-10 °C
thotgas=60 °C
tsub=5K
Rated cap cond, Liq. cap [IMP]tcond=86 °F
tevap=14 °F
tsub=9 °F
Rated cap cond, Liq. cap [SI]tcond=30 °C
tevap=-10 °C
tsub=5K
RefrigerantsR1234yf
R1270
R134a
R22/R407C
R290
R32
R404A/R507
R407A
R407F
R410A
R448A
R449A
R450A
R452A
R452B
R454B
R513A
R600
R600a
R1234ze(E)
Temperature range [°C] [Max]140 °C
Temperature range [°C] [Min]-50 °C
Temperature range [°F] [Max]285 °F
Temperature range [°F] [Min]-58 °F
TypeNRV 10s
UL approval file nameREFRIGERANT VALVE 53R0
UL approved refrigerantsR134a;R22;R404A;R407A;R407C;R407F;R410A;R448A;R449A;R450A;R452A;R507A;R513A
