DANFOSS 018F6715
DANFOSS 018F6715
DANFOSS 018F6715

DANFOSS 018F6715 018F6190

TTD333.00

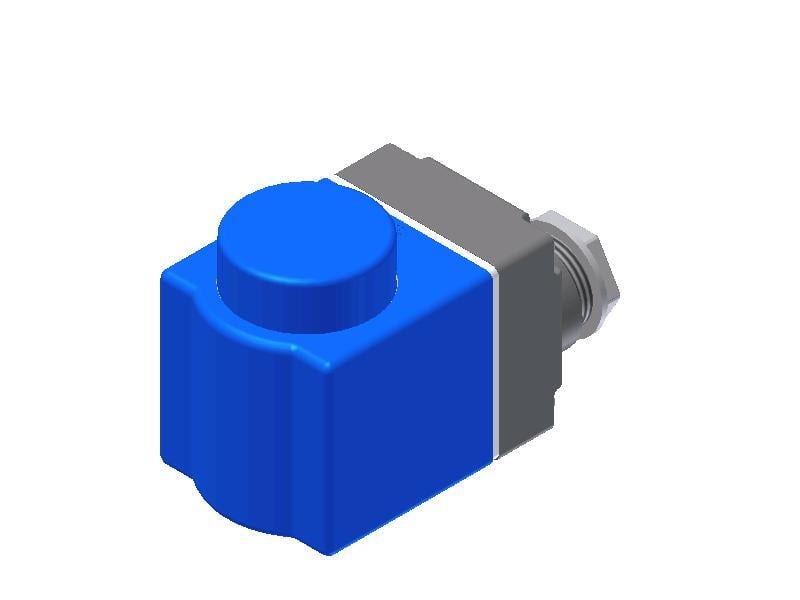

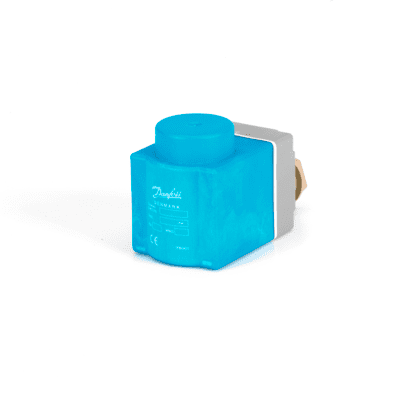

DANFOSS 24V 60Hz 10W SOLENOID COIL PART# 018F6715
Choose Quantity
+ Add to Cart
Product Details
Gross weight0.33 kg
Net weight0.29 kg
EAN5702428023115

Actuator size13.5 mm
Ambient temperature range [°C] [Max]80 °C
Ambient temperature range [°C] [Min]-40 °C
Ambient temperature range [°F] [Max]175 °F
Ambient temperature range [°F] [Min]-40 °F
ApprovalLLC CDC TYSK
Cable diameter [mm] [Max]11 mm
Cable diameter [mm] [Min]6 mm
Coil connectionConnection box
Coil design standardVDE 0580
Coil fasteningClip-on
Coil winding insulation classClass H to IEC 85
ColourBlue
ComplianceEN 60730-1
Conductor area [mm2]0.75 - 1.5 mm2
Duty ratingContinuous
Electrical connectionTerminal box
Electrical connection sizePg 13.5
Enclosure rating IPIP67
Frequency [Hz]60 Hz
Packing formatMulti pack
Parts Program nameEV210B
EV212B
EV220B 15 - 50
EV220B 6 - 22
EV220B 65 - 100
EV222B
EV224B
EV227B
EV250B
EV251B
Power consumption 60Hz [VA]25 VA
Power consumption [W] 60Hz14 W
Product accessoriesSolenoid coil accessories
Product groupSolenoid valves
Product nameSolenoid coil
Quantity per packing format32 pc
Rel. Humidity [% RH] [Max]100 %
Rel. Humidity [% RH] [Min]0 %
ServiceableNo
Spare part number018F6190
Supply voltage 60Hz Max [V]24 V
Supply voltage [V] AC24 V
TypeBE024BS
Type designationBE024BS
