DANFOSS 009L8066
DANFOSS 009L8066
DANFOSS 009L8066

DANFOSS 009L8066

TTD454.00

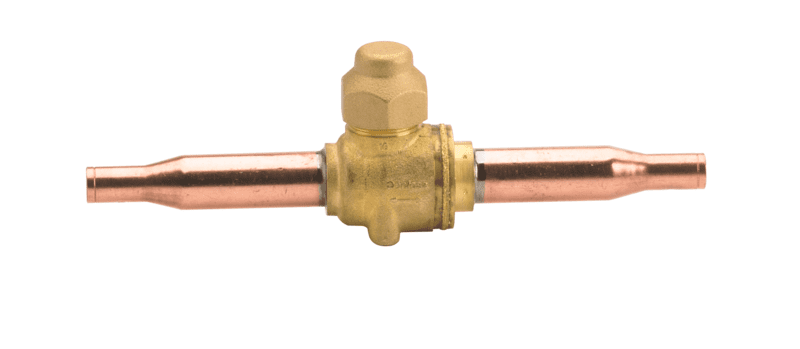

DANFOSS GBC SHUT-OFF BALL VALVE PART# 009L8066
Choose Quantity
+ Add to Cart
Product Details
Gross weight1.16 kg
Net weight0.9 kg
EAN5702428514668

Access portYES
ApprovalCE
UL
Body materialBrass
Connection materialCopper
Cv value [gal/min]71.96 gal/min
DirectionStraightway
Flow directionBi-flow
Flow direction indicatorEmbossed 2-way arrow
Inlet connection typeSOLDER, ODF
Inlet size [in]1 1/8 IN
Kv value [m³/h]62.25 m³/h
Max. test pressure [bar]65 bar
Max. test pressure [psig]940 psig
Max. Working Pressure [bar]45 bar
Max. Working Pressure [psig]650 psig
Medium temp. range note100°C-150°C for short term use
Outlet connection typeSOLDER, ODF
Outlet size [in]1 1/8 IN
Packing formatMulti pack
Parts includedSchrader valve
Product accessoriesBM/GBC valve accessories
Product descriptionBall Valve
Product family nameGBC v2
Product groupShut-off and regulating valves
Product nameShut-off ball valve
Quantity per packing format5 pc
RefrigerantsR134a
R22/R407C
R404A/R507
R407A
R407F
R410A
R448A
R449A
R450A
R452A
R513A
R407H
R449B
R515B
R1234ze(E)
R1234yf
R290
R452B
R134a/R513A
R454B
R454C
R455A
R516A
ServiceableBM/GBC valve spare parts
Temperature range [°C] [Max]150 °C
Temperature range [°C] [Min]-40 °C
Temperature range [°F] [Max]300 °F
Temperature range [°F] [Min]-40 °F
TypeGBC 28s
