DANFOSS 009G8059 GBC54S 2 1/8

TTD1,445.00

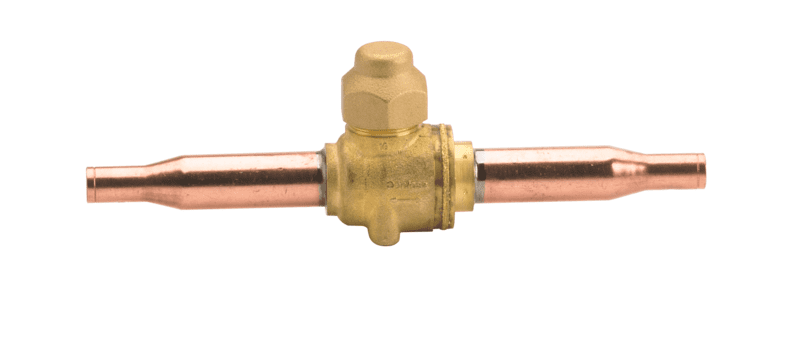

DANFOSS GBC54S 2 1/8" SHUT-OFF BALL VALVE PART# 009G8059
Choose Quantity
+ Add to Cart
Product Details
Gross weight4.75 kg
Net weight4.74 kg
EAN5702428866590

Access portYES
ApprovalCE
UL
Body materialBrass
Connection materialCopper
Cv value [gal/min]277.57 gal/min
DirectionStraightway
Flow directionBi-flow
Flow direction indicatorEmbossed 2-way arrow
Inlet connection typeSOLDER, ODF
Inlet size [in]2 1/8 IN
Inlet size [mm]54 mm
Kv value [m³/h]240.11 m³/h
Max. test pressure [bar]65 bar
Max. test pressure [psig]940 psig
Max. Working Pressure [bar]45 bar
Max. Working Pressure [psig]650 psig
Outlet connection typeSOLDER, ODF
Outlet size [in]2 1/8 IN
Outlet size [mm]54 mm
Packing formatMulti pack
Parts includedSchrader valve
Product accessoriesBM/GBC valve accessories
Product descriptionBall Valve
Product family nameGBC
Product groupShut-off and regulating valves
Product nameShut-off ball valve
Quantity per packing format2 pc
RefrigerantsR134a
R22/R407C
R404A/R507
R407A
R407F
R410A
R448A
R449A
R450A
R452A
R513A
R1234ze(E)
ServiceableBM/GBC valve spare parts
Temperature range [°C] [Max]121 °C
Temperature range [°C] [Min]-40 °C
Temperature range [°F] [Max]250 °F
Temperature range [°F] [Min]-40 °F
TypeGBC 54s
