DANFOSS 009G7052
DANFOSS 009G7052
DANFOSS 009G7052

DANFOSS 009G7052

TTD245.00

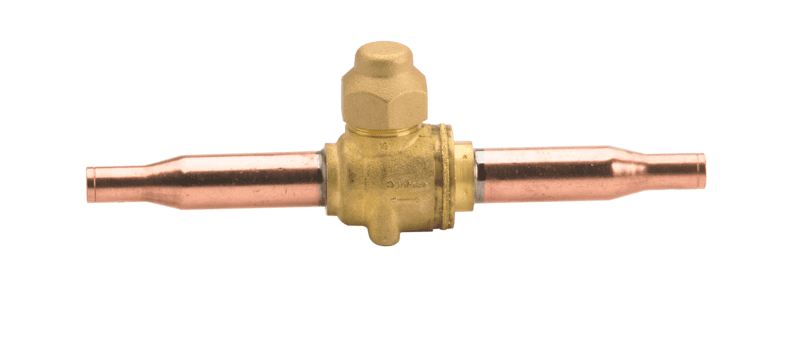

DANFOSS GBC 12S 1/2" SHUT-OFF BALL VALVE PART# 009G7052
Quantity
Add to Cart
Product Details
Gross weight0.31 kg
Net weight0.25 kg
EAN5702428065788

Access portYES
ApprovalC UL US LISTED
CE
EAC
Body materialBrass
Connection materialCopper
Cv value [gal/min]14.94 gal/min
DirectionStraightway
EquipmentCap w. wire seal (EN 378 comp)
Flow directionBi-flow
Flow direction indicatorEmbossed 2-way arrow
Inlet connection typeSOLDER, ODF
Inlet size [in]1/2 IN
Kv value [m³/h]12.92 m³/h
Max. test pressure [bar]65 bar
Max. test pressure [psig]940 psig
Max. Working Pressure [bar]45 bar
Max. Working Pressure [psig]650 psig
Outlet connection typeSOLDER, ODF
Outlet size [in]1/2 IN
Packing formatMulti pack
Panel mounting optionM4 × 0.7 (2 PC)
Parts includedSchrader valve
Product accessoriesBM/GBC valve accessories
Product descriptionBall Valve
Product family nameGBC
Product groupShut-off and regulating valves
Product nameShut-off ball valve
Quantity per packing format25 pc
RefrigerantsR134a
R22/R407C
R32
R404A/R507
R407A
R407F
R410A
R448A
R449A
R450A
R452A
R513A
R1234ze(E)
ServiceableBM/GBC valve spare parts
Temperature range [°C] [Max]150 °C
Temperature range [°C] [Min]-40 °C
Temperature range [°F] [Max]300 °F
Temperature range [°F] [Min]-40 °F
TypeGBC 12s
UL approved refrigerantsR134a;R407A;R407F;R410A;R448A;R449A;R450A;R452A;R513A
