DANFOSS 60110366
DANFOSS 60110366
DANFOSS 60110366

DANFOSS 60110366

TTD330.00

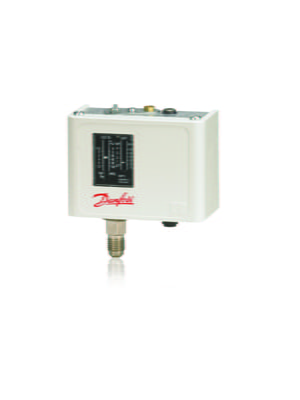

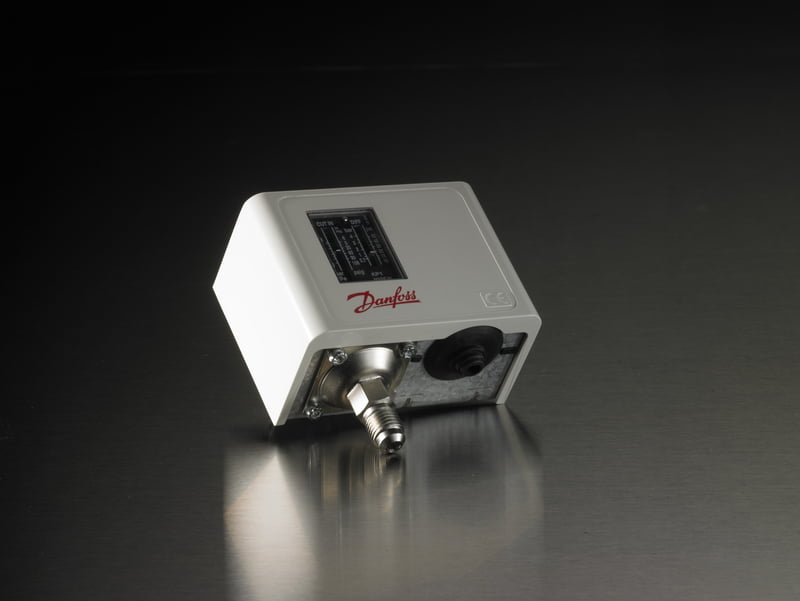

DANFOSS KP1 MANUAL W/ CAP LOW PRESSURE SWITCH PART# 060-110366
Quantity
Add to Cart
Product Details
Gross weight0.32 kg
Net weight0.29 kg
EAN5702422017486

Amb. Temp. Note80 °C/176 °F for max 120 min
Ambient temperature range [°C] [Max]65 °C
Ambient temperature range [°C] [Min]-25 °C
Ambient temperature range [°F] [Max]149 °F
Ambient temperature range [°F] [Min]-13 °F
ApprovalBV
CCC
CE
DNV
EAC
GL
LR
LVD
PED
PZH
RINA
RMRS
RoHS China
c UL us UL353, CS C22.2
c UL us UL873, CS C22.2
CMIM
LLC CDC EURO-TYSK
Contact functionSPDT
Contact ratingAC15=10 A, 400 V
AC1=16 A, 400 V
AC3=16 A, 400 V
DC13=12 W, 220 V
LR=112 A, 400 V
Differential [bar]0.7 bar
Differential [psi]10 psi
Electrical connectionRubber cable gland
Electrical connection size6-14 mm
EN 60947 electrical propertiesPollution degree: 3
Rated impulse voltage: 4 kV
EN 60947 wiring propertiesFlex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2
Enclosure rating IPIP30
Enclosure rating Nema (~)1
Equipment
Lubricants compatibilityOilfree applications
Max. test pressure [bar] Pe20 bar
Max. test pressure [psig]290 psig
Max. Working Pressure [bar]17 bar
Max. Working Pressure [psig]245 psig
Oil free refrigerantsR134a;R513A;R515B
Packing formatMulti pack
Pressure connection size1/4
Pressure connection standardDIN 8906
Pressure connection typeFlare
Pressure Male/FemaleMale
Pressure range categoryLow pressure
Pressure sensing elementBellows
Product accessoriesSwitches accessories
Product descriptionPressure Switch
Product family nameKP Pressure switch
Product groupSwitches and thermostats
Product namePressure switch
Quantity per packing format36 pc
Refrigerant oil compatibilityOilfree applications
R134a
R513A
R515B
RefrigerantsR113
R124
R134a
R22
R404A
R407A
R407C
R407F
R407H
R422B
R422D
R438A
R448A
R449A
R450A
R452A
R507A
R513A
R449B
R515B
Regulation range27 inHg - 101 psig
Regulation range [bar] Pe [Max]7 bar
Regulation range [bar] Pe [Min]-0.9 bar
Reset functionManual Min
ServiceableNo
TypeKP1
UL approval file nameE31024
MH27572
UL approved refrigerantsR113;R124;R134a;R22;R404A;R407A;R407C;R407F;R407H;R422B;R422D;R438A;R448A;R449A;R449B;R450A;R452A;R507A;R513A;R515B
