DANFOSS 060-5244

DANFOSS 060-5244

TTD804.00

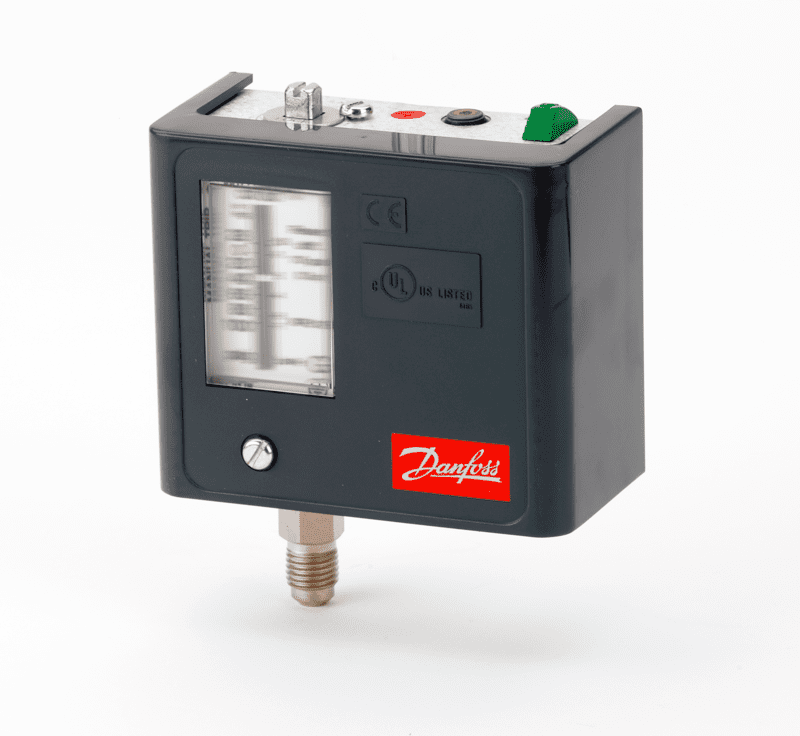

DANFOSS KPU6B MANUAL HIGH PRESSURE SWITCH PART# 060-5244
Choose Quantity
+ Add to Cart
Product Details
Gross weight0.68 kg
Net weight0.65 kg
EAN5702428063746

Amb. Temp. Note80 °C/176 °F for max 120 min
Ambient temperature range [°C] [Max]50 °C
Ambient temperature range [°C] [Min]-40 °C
Ambient temperature range [°F] [Max]122 °F
Ambient temperature range [°F] [Min]-40 °F
ApprovalCE
LVD
PED
RoHS
c UL us UL873, CS C22.2
Contact functionSPDT
Contact rating144 A, 240 V ac
24 A, 240 V ac
DC=12 W pilot duty
FLA=24 A, 120 V ac
LRA = 144 A, 120 V ac
Differential [bar]4 bar
Differential [psi]60 psi
Electrical conn. commentsfor ½ in male pipe thread
Electrical connectionHole
Electrical connection size7/8 in
EN 60947 electrical propertiesPollution degree: 3
Rated impulse voltage: 4 kV
EN 60947 wiring propertiesFlex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2
Enclosure rating IPIP30
Enclosure rating Nema (~)1
Max. test pressure [bar] Pe50 bar
Max. test pressure [psig]725 psig
Max. Working Pressure [bar]46.5 bar
Max. Working Pressure [psig]675 psig
Packing formatMulti pack
Pressure connection size1/4
Pressure connection standardDIN 8906
Pressure connection typeFlare
Pressure Male/FemaleMale
Pressure sensing elementBellows
Product accessoriesSwitches accessories
Product descriptionHigh Pressure Control
Product family nameKP Pressure switch
Product groupSwitches and thermostats
Product namePressure switch
Quantity per packing format14 pc
Refrigerant oil compatibilityOilfree applications
R134a
R513A
R515B
RefrigerantsR113
R124
R134a
R22
R404A
R407A
R407C
R407F
R407H
R410A
R422B
R422D
R438A
R448A
R449A
R450A
R452A
R507A
R513A
R744
R449B
R515B
Regulation range [bar] Pe [Max]42 bar
Regulation range [bar] Pe [Min]8 bar
Regulation range [psig] Pe [Max]600 psig
Regulation range [psig] Pe [Min]100 psig
Reset functionManual Max
ServiceableNo
TypeKPU6B
UL approval file nameE31024
