DANFOSS 060-5242
TTD369.00

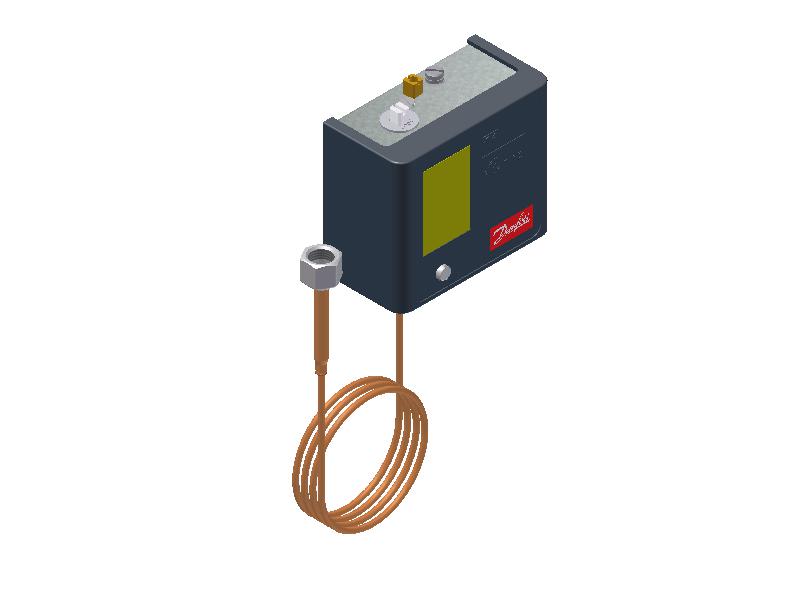

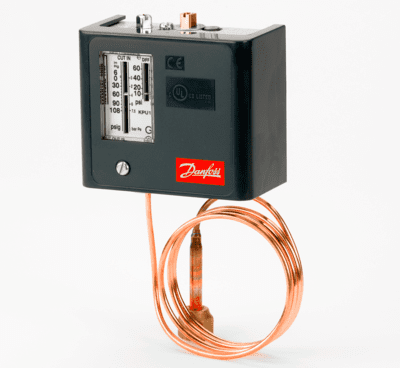

DANFOSS KPU5 FAN CYCLING CONTROL PRESSURE SWITCH PART# 0605242
Product Details
| Gross weight | 0.74 kg |
| Net weight | 0.71 kg |
| EAN | 5702428063715 |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [Max] | 50 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 122 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | CE LVD RoHS c UL us UL873, CS C22.2 |
| Cap. tube length fraction [in] | 36 in |
| Capillary tube length [mm] | 900 mm |
| Contact function | SPST(NO) |
| Contact rating | 144 A, 240 V ac 24 A, 240 V ac DC=12 W pilot duty FLA=24 A, 120 V ac LRA = 144 A, 120 V ac |
| Differential [bar] [Max] | 6 bar |
| Differential [bar] [Min] | 1.8 bar |
| Differential [psi] [Max] | 85 psi |
| Differential [psi] [Min] | 25 psi |
| Electrical conn. comments | for ½ in male pipe thread |
| Electrical connection | Hole |
| Electrical connection size | 7/8 in |
| EN 60947 electrical properties | Pollution degree: 3 Rated impulse voltage: 4 kV |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP30 |
| Enclosure rating Nema (~) | 1 |
| Max. test pressure [bar] Pe | 36.5 bar |
| Max. test pressure [psig] | 529 psig |
| Max. Working Pressure [bar] | 35 bar |
| Max. Working Pressure [psig] | 510 psig |
| Packing format | Multi pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | DIN 8912 |
| Pressure connection type | Flare nut |
| Pressure Male/Female | Female |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Fan Control |
| Product family name | KP Pressure switch |
| Product group | Switches and thermostats |
| Product name | Pressure switch |
| Quantity per packing format | 10 pc |
| Refrigerant oil compatibility | Oilfree applications R134a R513A R515B |
| Refrigerants | R113 R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R450A R452A R507A R513A R449B R515B |
| Regulation range [bar] Pe [Max] | 32 bar |
| Regulation range [bar] Pe [Min] | 8 bar |
| Regulation range [psig] Pe [Max] | 465 psig |
| Regulation range [psig] Pe [Min] | 100 psig |
| Reset function | Auto |
| Serviceable | No |
| Type | KPU5 |
| UL approval file name | E31024 |
