DANFOSS 034L0043
DANFOSS 034L0043
DANFOSS 034L0043
DANFOSS 034L0043

DANFOSS 034L0043

TTD502.00

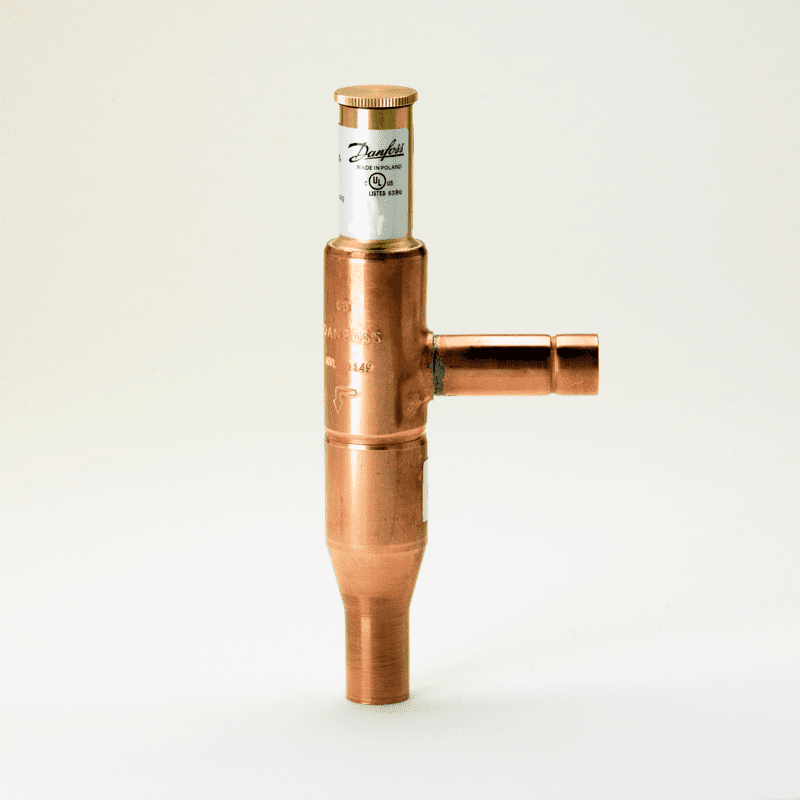

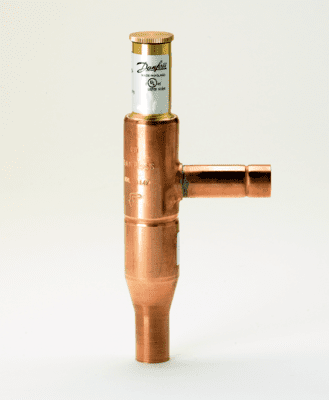

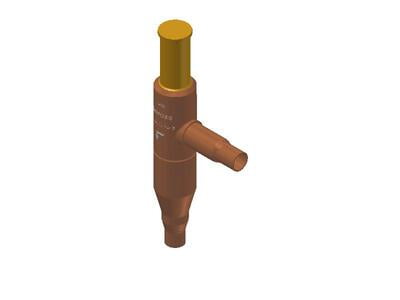

DANFOSS KVL12 1/2" ODF CRANKCASE PRESSURE REGULATING VALVE PART# 034L0043
Quantity
Add to Cart
Product Details
Gross weight0.44 kg
Net weight0.4 kg
EAN5702428411783

ApprovalC UL US LISTED
EAC
LLC CDC TYSK
RoHS
RoHS China
Approval file nameREFRIGERANT VALVE 53R0
Cv value [gal/min]3.7 gal/min
Factory setting [bar]2 bar
Factory setting [psig]29 psig
Flow direction indicatorEngraved 1-way arrow
Further informationMax. extern.bellow press.26bar
Inlet connection typeFLARE
Inlet size [in]1/2 IN
Inlet size [mm]12 mm
Kv value [m³/h]3.2 m³/h
Max. test pressure [bar]19.8 bar
Max. test pressure [psig]286 psig
Max. Working Pressure [bar]18 bar
Max. Working Pressure [psig]260 psig
Medium temperature range [°C] [Max]130 °C
Medium temperature range [°C] [Min]-60 °C
Medium temperature range [°F] [Max]266 °F
Medium temperature range [°F] [Min]-76 °F
Outlet connection typeFLARE
Outlet size [in]1/2 IN
Outlet size [mm]12 mm
P band max. [bar]2 bar
P band max. [psi]29 psi
Packing formatMulti pack
Product accessoriesNo
Product family nameKVL
Product groupPress. and temp. regul. valves
Product nameCrankcase pressure regulator
Quantity per packing format12 pc
Rated capacity R134a [kW]5.3 kW
Rated capacity R134a [TR]0.8 tons
Rated capacity R22 [kW]7.1 kW
Rated capacity R22 [TR]1.2 tons
Rated capacity R404A/R507 [kW]6.3 kW
Rated capacity R404A/R507 [TR]1 tons
Rated capacity R407C [kW]6.5 kW
Rated capacity R407C [TR]1.1 tons
Refrigerant oil compatibilityOilfree applications
R1234ze(E)
R513A
RefrigerantsR134a
R22
R404A
R407A
R407C
R407F
R422B
R422D
R448A
R449A
R450A
R452A
R507A
R513A
R1234ze
R407H
R449B
R454C
R455A
R515B
R516A
R1234yf
R454A
Regulation range [bar] [Max]6 bar
Regulation range [bar] [Min]0.2 bar
Regulation range [psig] Pe [Max]87 psig
Regulation range [psig] Pe [Min]3 psig
ServiceableKV valves spare parts
TypeKVL 12
